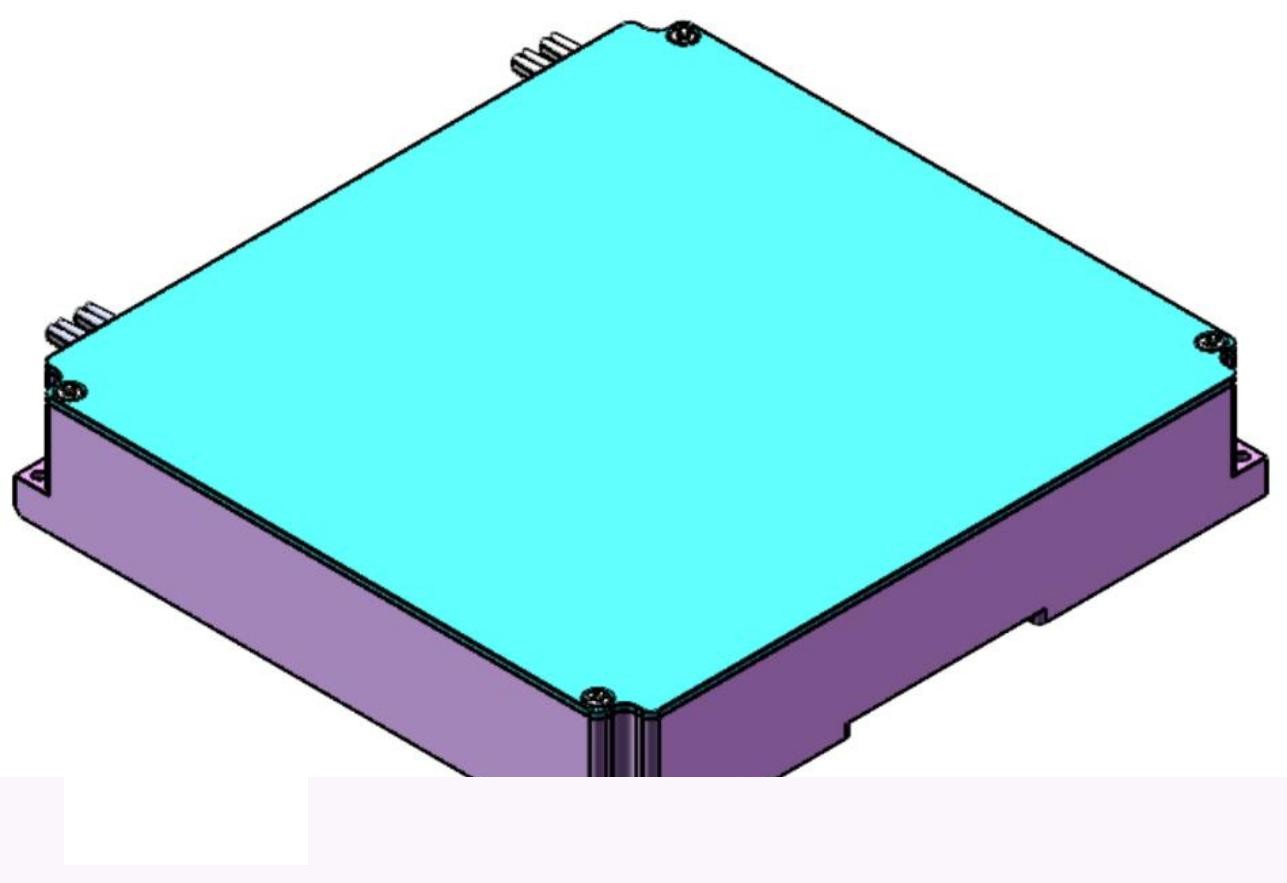

PM (Polarization-maintaining) 1X12 MEMS Fiber Optical Switch 1550nm 0.9MM 0.5M PM Fiber FC/APC 158x150x29nm Module
FW-MSX-1X12-15-PM-09-05-FC/APC-M3

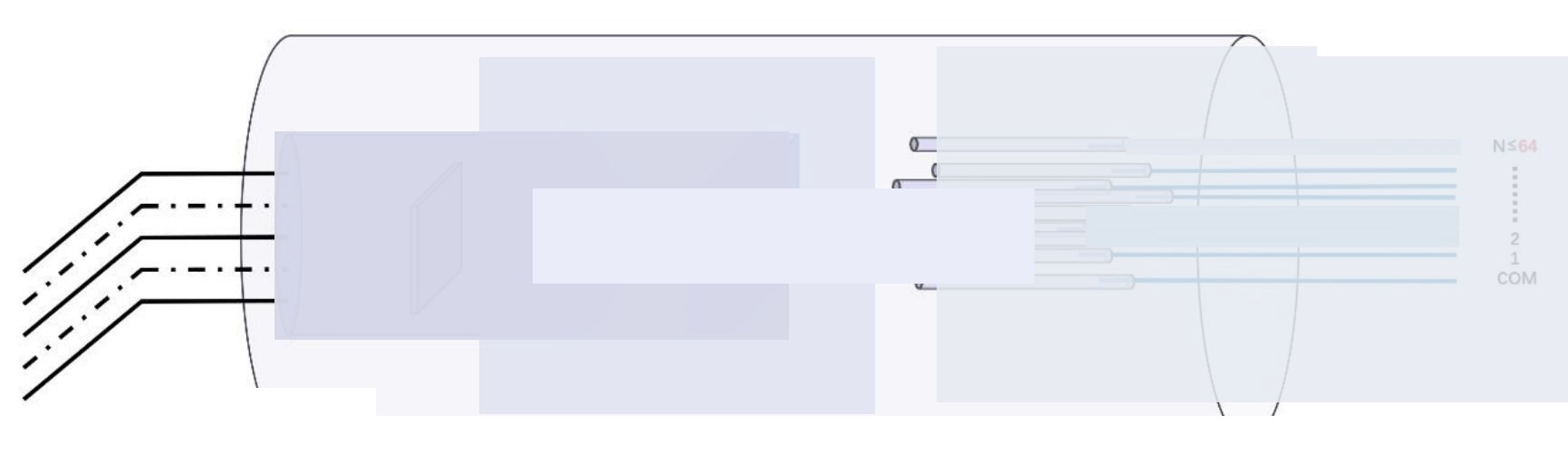

MEMS 1xN optical switch is based on micro-electro-mechanical system technology. It allows channel selection between an input fiber and up to N output fibers by rotating the MEMS mirror.
The switch is bi-directional and can also be used as a Nx1 selector switch. The optical switch offers highly reliable, durable, long-life operation in a compact package.
Applications
- Optical network routing
- Resource sharing in test & measurement applications
- Optical network protection and restoration
Specifications
Table 1 Optical Specifications1
|
PARAMETER |
VALUE |
UNIT |
NOTE |
|
|
Wavelength |
15:1525~ 1568 |
nm |
Single-band: 13 or 15 or 16 Dual-band: 13&15 or 15&16 Full-band: 13&15&16 or 1290~ 1650 |
|
|
Test Wavelength |
1550 | nm | ||
|
MxN |
1×12 |
|||
|
Insertion Loss |
1×12 |
≤1.8 |
dB |
1. IL is measured at CWL, 23°C 2. IL is for Single-band. Dual-band adds 0.2dB 3. If with connectors, IL increases by 0.2~0.3dB 4. If at -5~65°C, IL increases by 0.4dB |
|
Return Loss |
≥45 |
dB |
Or customer specify |
|
|
Repeatability |
≤0. 1 |
dB |
Repeatability is defined after 100 cycles |
|
|
Crosstalk |
≥50 |
dB |
Or customer specify |
|
|
Polarization Dependent Loss |
≤0.35 |
dB |
||
|
Wavelength Dependent Loss |
≤0.6 |
dB |
WDL is measured at CWL±20nm, 23°C |
|
|
Temperature Dependent Loss |
≤0.6 |
dB |
||
|
Extinction Ratio |
≥18 |
dB |
Welding connectors of good quality |
|
|
Switch Time |
≤5 |
ms |
1.One set of connection configurations 2. Excluding protocol transmission time 3. When using optimized voltage ramp |
|
|
Durability |
≥1×109 |
cycle |
||
|
Maximum Optical Power |
≤500 |
mW |
||
1. All specifications are without connectors.
Table 2 Electrical and Mechanical Specifications1
|
PARAMETER |
VALUE |
UNIT |
|
Latching Type |
Non-latching |
|
|
Control Type |
UART |
|
|
Supply Voltage |
5~ 12 |
V |
|
Power Consumption |
≤2, typical 1.7 |
W |
|
Connect Type |
||
|
Dimension |
158x150x29 |
mm |
[if !supportLists]1.[endif]All specifications belong to MSX M3.
Table 3 Environmental Conditions
|
PARAMETER |
VALUE |
UNIT |
|
Operation Temperature |
-5~65 |
℃ |
|
Storage Temperature |
-40~85 |
℃ |
|
Operation Humidity |
5~95 |
%RH |
|
Storage Humidity |
5~95 |
%RH |
Table 4 Pigtail and Connector Type/Length
|
PARAMETER |
VALUE |
UNIT |
NOTE |
|
Fiber Type |
|||
|
Fiber Pigtail (All Ports) |
250um fiber or 900um loose tube |
||
|
Fiber Length (All Ports) |
0.5±0.05 |
m |
Or customer specify |
|
Optical Connector (All port) |
FC/APC |
Or customer specify |

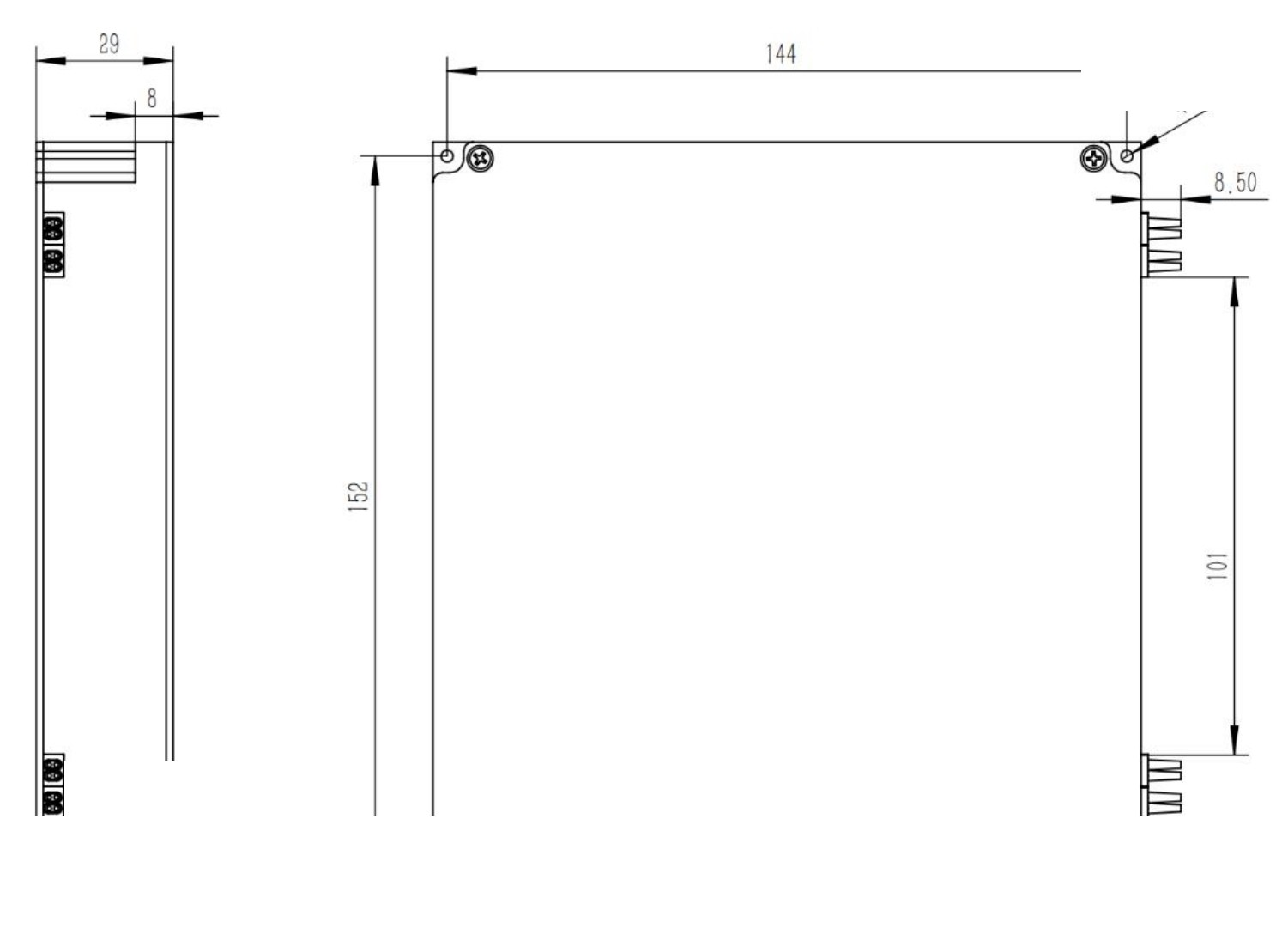

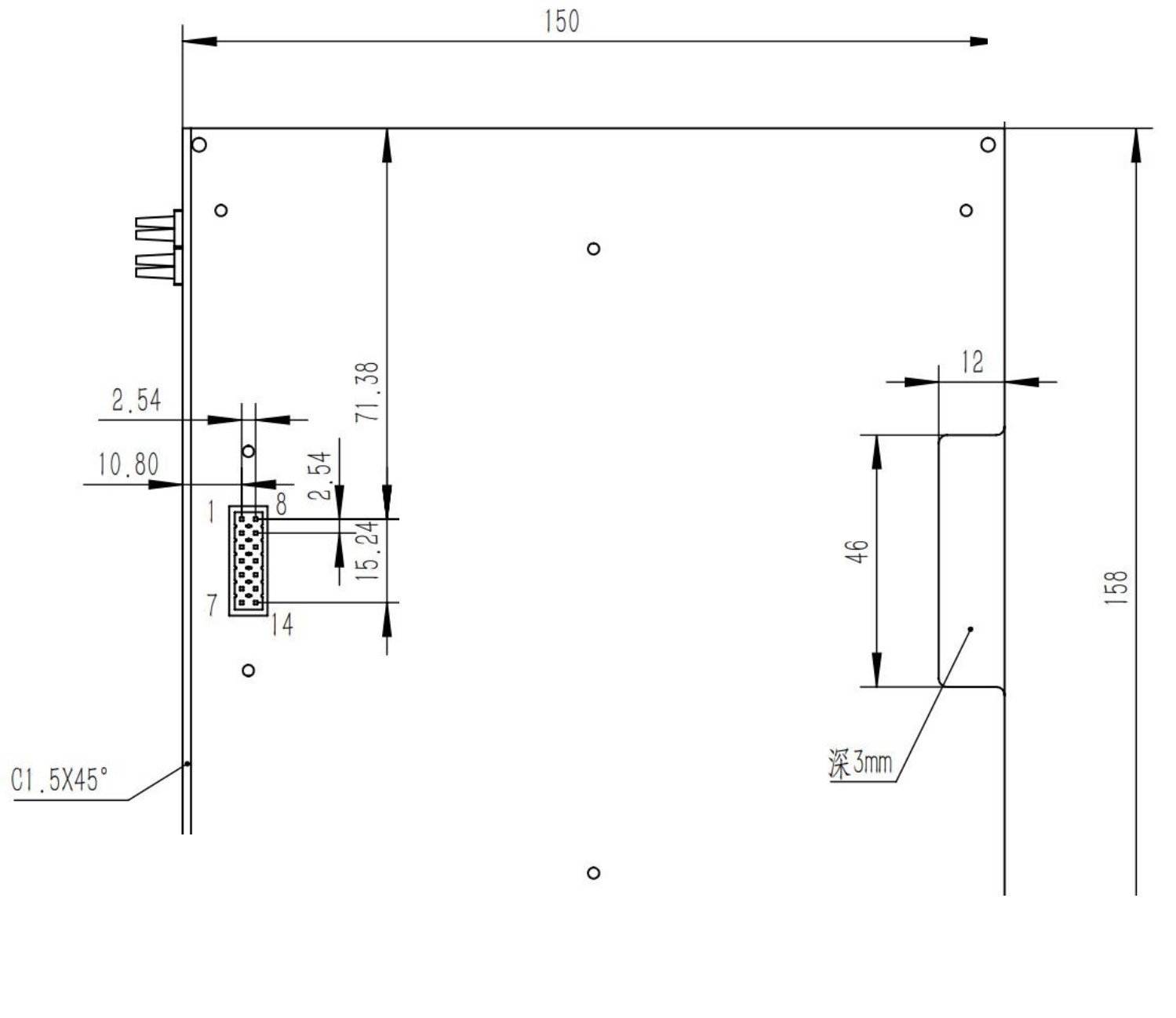

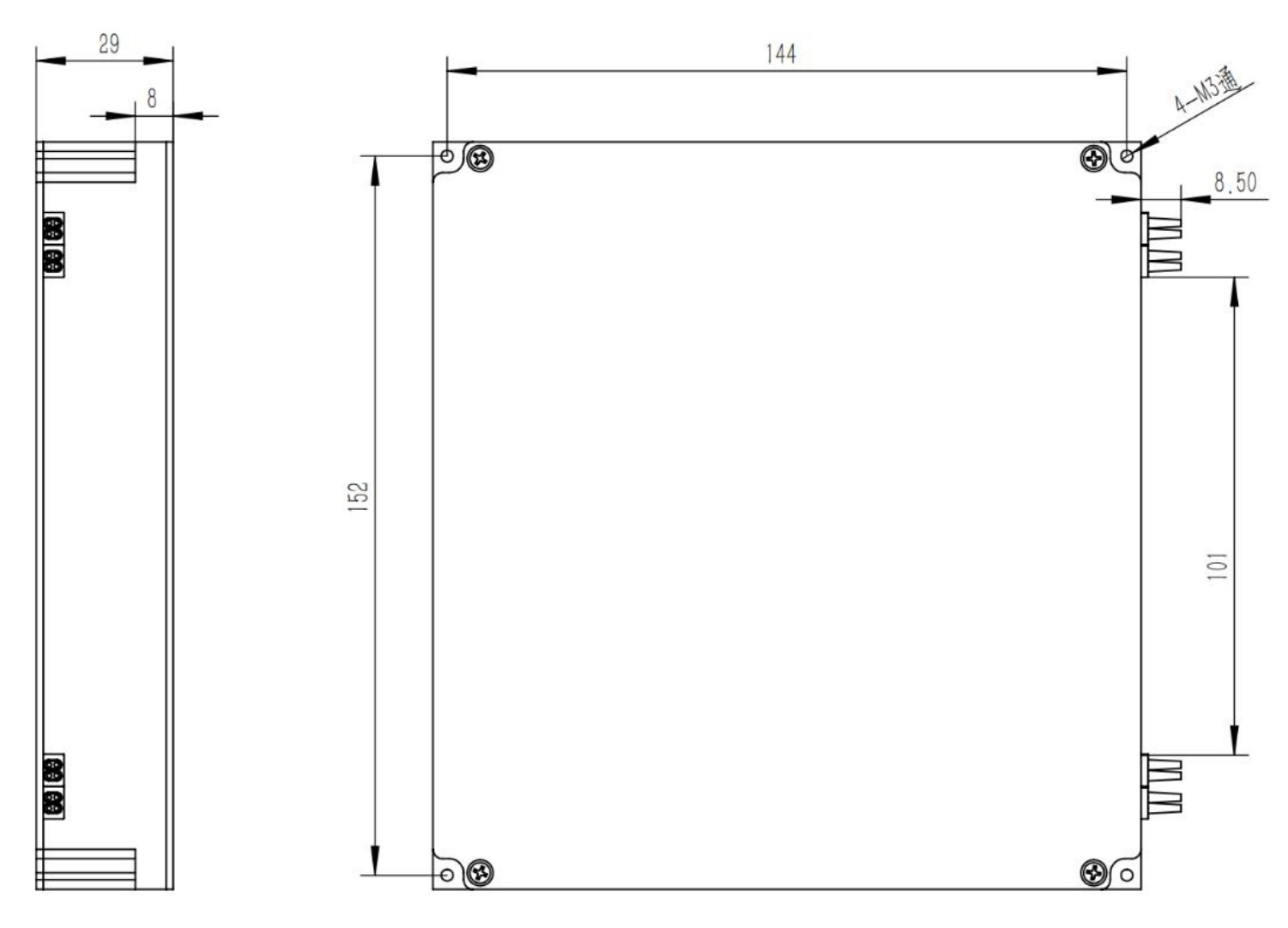

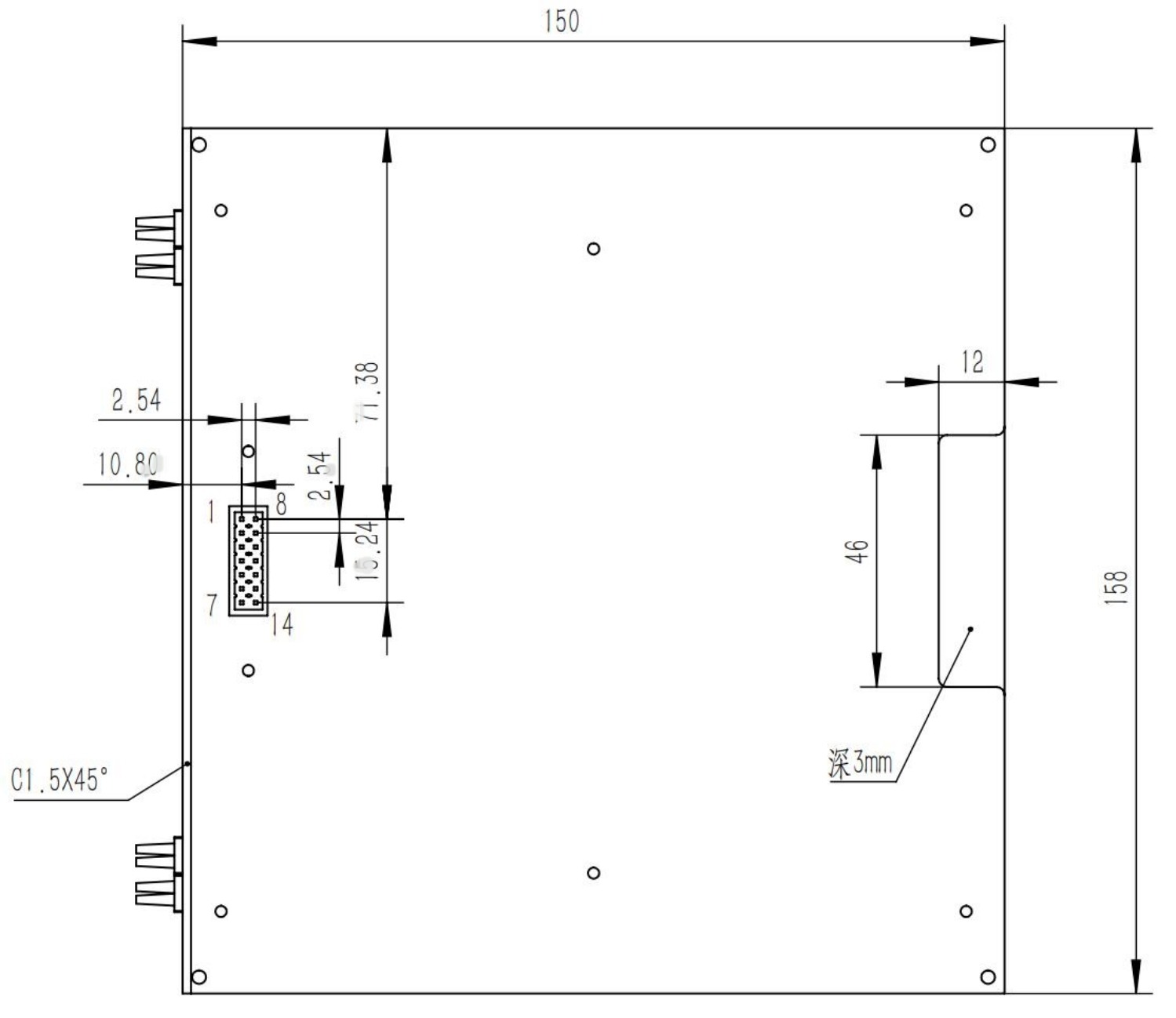

Mechanical Dimensions
Table 5 Electronic PIN Definition
|
Pin Number |
Name |
Input/Output |
Level |
Function |
| 1 |
NC |
No connect |
||
| 2 |
VCC |
Power supply |
+(5.0±5%) V Power Supply Max 150mA |
|
| 3 |
I/O |
LVTTL |
Reserved |
|
| 4 |
GND |
Power supply ground |
||
| 5 |
I/O |
LVTTL |
Reserved |
|
| 6 |
TXD |
Output |
LVTTL |
UART serial data output |
| 7 |
RXD |
Input |
LVTTL |
UART serial data input |
| 8 |
I/O |
LVTTL |
Reserved |
|
| 9 |
I/O |
LVTTL |
Reserved |
|
| 10 |
I/O |
LVTTL |
Reserved |
|
| 11 |
Case GND |
Case ground |
||
| 12 |
I/O |
LVTTL |
Reserved |
|
| 13 |
I/O |
LVTTL |
Reserved |
|
| 14 |
Reset |
Input |
LVTTL |
Reset, low active, the pulse width needs 4ms |
UART Control Setting
Baud Rate: 115200
Start Bits: 1
Data Bits: 8
Parity: None
Stop Bits: 1
Flow Control: None.
Communication Protocal
Protocol 1 (Default)
Command
|
FLAG |
LEN |
RES |
COMMA |
DATA |
SUM |
|
2 Byte |
1 Byte |
1 Byte |
1 Byte |
1 Byte |
FLAG: 0xEFEF or 0xAAAA
LEN: Total number of bytes from RES to SUM
RES: 0xFF
SUM: Checksum, SUM=FLAG+LEN+RES+COMMA+DATA
Response
|
FLAG |
LEN |
RES |
RESP |
DATA |
SUM |
|
2 Byte |
1 Byte |
1 Byte |
1 Byte |
1 Byte |
FLAG: 0xEDFA
LEN: Total number of bytes from RES to SUM
RES: 0xFF
SUM: Checksum, SUM=FLAG+LEN+RES+COMMA+DATA
Command List
|
Set Channel |
|||||||
|
Command |
FLAG1 |
LEN |
RES |
CMD |
Switch |
DATA |
SUM |
|
0xEFEF |
0x06 |
0xFF |
0x0D |
00/01 |
CHANNEL （1byte) |
SUM |
|
|
Eg：EF EF 06 FF 0D 00 00 01 F1 (set channel 1) EF EF 06 FF 0D 00 00 02 F2 (set channel 2) EF EF 06 FF 0D 00 00 03 F3 (set channel 3) |
|||||||
|
Response |
FLAG2 |
LEN |
RES |
RESP |
DATA |
SUM | |
|
0xEDFA |
0x04 |
RES |
0x04 |
Success：0xEE Fail：0xEF |
SUM |
||
|
eg: ED FA 04 FF 04 EE DC |
|||||||
|
Get Channel |
||||||
|
Command |
FLAG1 |
LEN |
RES |
COMMA |
DATA |
SUM |
|
0xEFEF |
0x03 |
RES |
0x02 |
SUM |
||
|
eg: EF EF 03 FF 02 E2 |
||||||
|
Response |
FLAG2 |
LEN |
RES |
RESP |
DATA |
SUM |
|
0xEDFA |
0x04 |
RES |
0x02 |
CHANNEL（1byte) |
SUM |
|
|
eg: ED FA 04 FF 02 07 F3 |
||||||
Note:When channel 0 is set, the voltage is 0, that is block state
Oder Information
|
Part No. |
Specification |
|
FW-MSX-1X12-15-PM-09-05-FC/APC-M3 |
PM (Polarization-maintaining) 1X12 MEMS Fiber Optical Switch 1550nm 0.9MM 0.5M PM Fiber FC/APC 158x150x29nm Module |
