Optical Layer Transport Platform
Network Management Platform（NMU）
It supports hot swapping, and the normal operation of the service board will not be affected after failure. Supports local and remote online upgrades without affecting the normal operation of business boards. Supports a unified network management platform base
Communication Products
Product Overview
- It supports hot swapping, and the normal operation of the service board will not be affected after failure.
- Supports local and remote online upgrades without affecting the normal operation of business boards.
- Supports a unified network management platform based on SNMP, and network management methods include CLI, Web, and NetView (graphical interface).
- It supports in-band and out-of-band networking management and provides 3 SFP optical ports, 2 RJ45 electrical ports and 1 Console serial port.
- Provides powerful multi-level network topology management functions to quickly and automatically discover network topology and generate intuitive and vivid display graphics.
- Following TMN specifications, it implements functions such as device management, monitoring and deployment, software upgrade management, configuration file management, alarm and performance management, and realizes comprehensive network management from the device level to the network level.
Product Details
- Product Details
network managementplatform（NMU）FW6NMU
NMU network management board is a network management function module specially designed by Stellars Fusion Technology for optical layer series products, which can fully realize comprehensive management of the entire optical layer series of communication products. The NMU network management board uses a high-speed ARM processor, which can provide powerful data processing capabilities and provide graphical (NetView), browser (Web), command line (CLI) and other management interfaces for the device. Based on the C/S architecture design, it provides server version (server-side and client) and stand-alone version. It is suitable for network deployments of various sizes and can build suitable network management for network management operators and enterprise users at all levels.
Product introduction

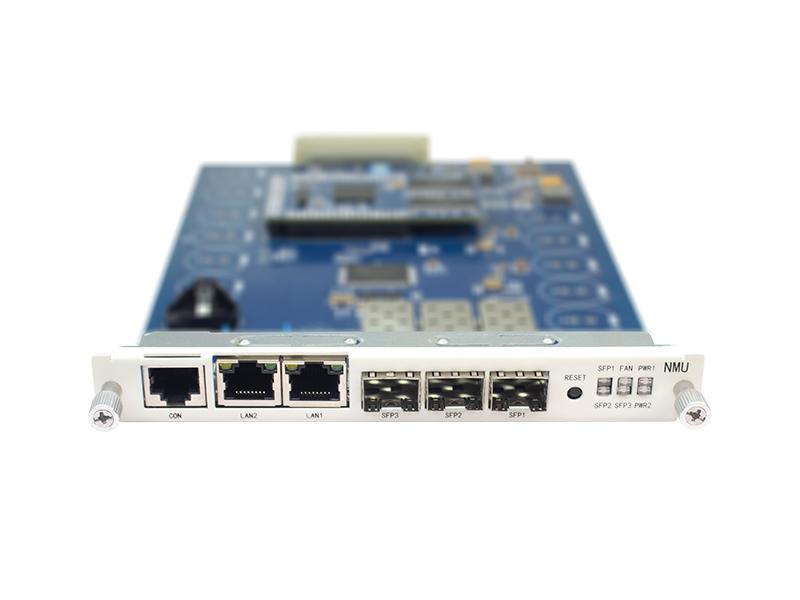

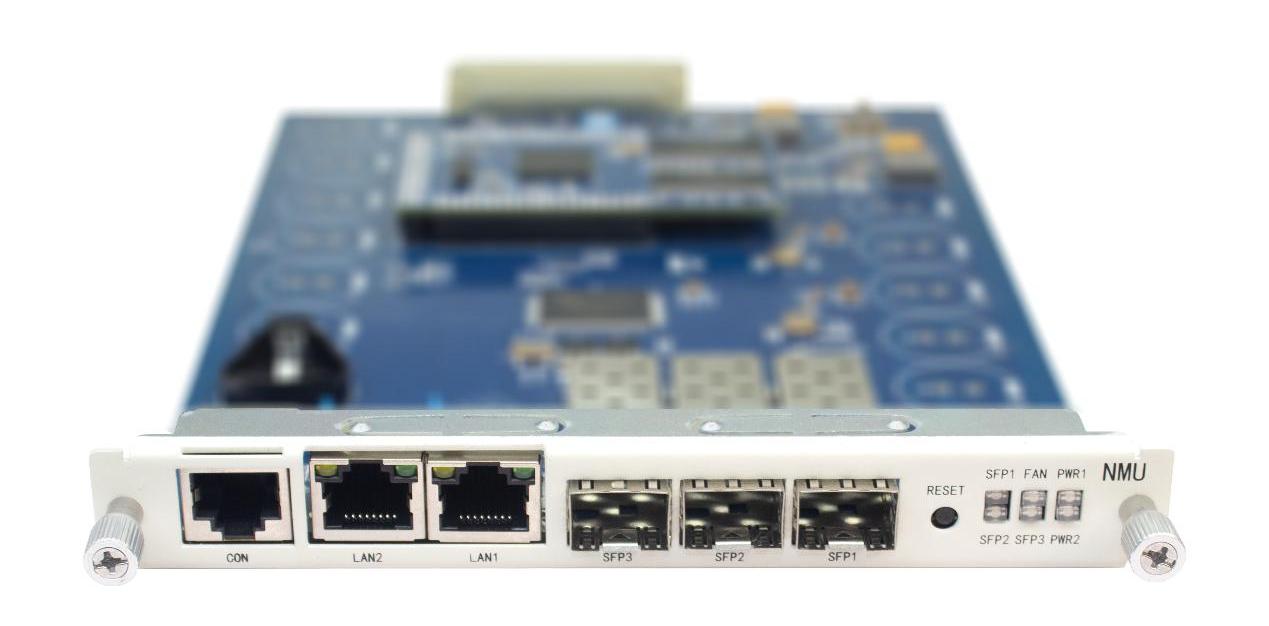

Figure 1 NMU network management board
Product Specifications
|
System parameters |
Technical indicators |
|
|
interface |
Optical port: 3 SFP optical ports Electrical port: 2 RJ45 interfaces Serial port: 1 Console interface |
|
|
Network management method |
NetView、Web、CLI |
|
|
Environmental requirements |
working temperature |
-10℃ ~ 70℃ |
|
Storage temperature |
-40℃ ~ 80℃ |
|
|
relative humidity |
5% ~ 95% no condensation |
|
|
Product size |
156 （W）× 20（H）× 225（D）（mm） |
|
|
Safety and EMC |
Comply with FCC, UL, CE, TUV, CSA standards |
|
|
Power consumption |
<16W |
|
Ordering information
|
model |
Specifications |
|
FW6NMU |
Network management board (the network management interface provides 3 SFP optical ports and 3 RJ45 electrical ports, supports a unified network management platform based on SNMP, network management methods CLI, Web, NMS (graphical interface)) contains Ruidong Netview comprehensive network management software system V1.0, which occupies 1 slot in the FW6600 chassis |
