M x N MEMS Optical Switch OXC
M x N MEMS Optical switch is used in optical cross-connect, OXC application. It’s also called Matric Optical Switch. It allows channel selections between M input fibers and N output fibers.
Stellar Fusion’s MEMS Modular Single-Mode OXC is based on industry proven, long-life, reliable MEMS 1xN optical switch components. Each MxN OXC consists of M 1xn OSW and N 1xm OSW.
Product Configurations
Note: M*N requires less than 1024.
Optical Specifications
|
PARAMETER |
VALUE |
UNIT |
NOTE |
|
|
Wavelength |
1290~1330 1525~1568 1600-1650 |
nm |
Or customer specify |
|
|
Test Wavelength |
1310/1550/1625 or 1650 |
nm |
||
|
MxN |
8×8/8×16/16×16/16×32 |
M*N≤1024 |
||
|
Insertion Loss |
4×4 |
≤1.4 @S |
dB |
@CWL,23°C Without Connectors @S: 13 or 15 or 16 @D: 13&15 or 15&16 (if with connectors or support @D, IL increased by 0.4dB) |
|
4×8 |
≤1.6 @S |
|||
|
8×8 |
≤1.8 @S |
|||
|
8×16 |
≤1.9 @S |
|||
|
12×12 |
≤2.0 @S |
|||
|
16×16 |
≤2.0 @S |
|||
|
16×32 |
≤2.3 @S |
|||
|
24×24 |
≤2.5 @S |
|||
|
Return Loss |
≥45 |
dB |
Or customer specify |
|
|
Repeatability |
≤0.1 |
dB |
||
|
Crosstalk |
≥50 |
dB |
Or customer specify |
|
|
Polarization Dependence Loss |
≤0.4 |
dB |
||
|
Wavelength Dependence Loss |
≤0.6 |
dB |
@CWL±20nm, 23°C |
|
|
Temperature Dependence Loss |
≤0.8 |
dB |
||
|
Switch Time |
≤15 @16×16 ≤25 @24×24 |
ms |
A set of configuration link Eg: M1-N12 |
|
|
Durability |
≥1×109 |
cycle |
||
|
Maximum optical Power |
≤500 |
mW |
||
Electrical and Mechanical Specifications
|
PARAMETER |
VALUE |
UNIT |
NOTE |
|
Switch Mode |
Non-latching |
||
|
Control Voltage |
12 |
V |
Module |
|
Dimension |
150×150×20 @8×8 200x180x18 @16×16 200x180x18 @8×24 312x180x30 @24×24 |
mm |
Module |
Environmental conditions
|
PARAMETER |
VALUE |
UNIT |
NOTE |
|
Operation Temperature |
-5~65 |
°C |
|
|
Storage Temperature |
-40~85 |
°C |
|
|
Operation Humidity |
5~95 |
%RH |
|
|
Storage Humidity |
5~95 |
%RH |
Pigtail and connector type/length
|
PARAMETER |
VALUE |
UNIT |
NOTE |
|
Fiber Type |
G657A2 or G657B3 250um bare fiber |
||
|
Fiber Pigtail(All Ports) |
250um fiber or 900um loose tube |
||
|
Fiber Length(All Ports) |
1.00±0.05 |
m |
Or customer specify |
|
Optical Connector(All port) |
None |
Or customer specify |

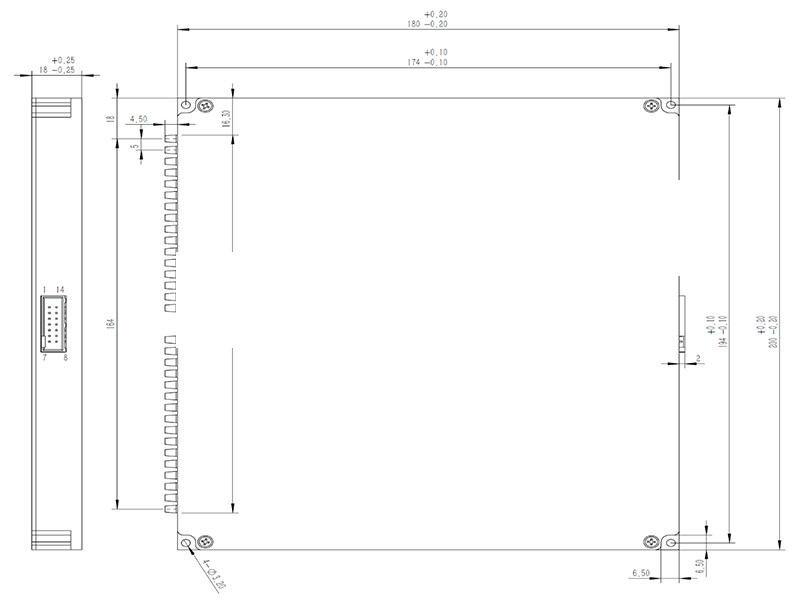

MECHANICAL DRAWINGS
 |
 |

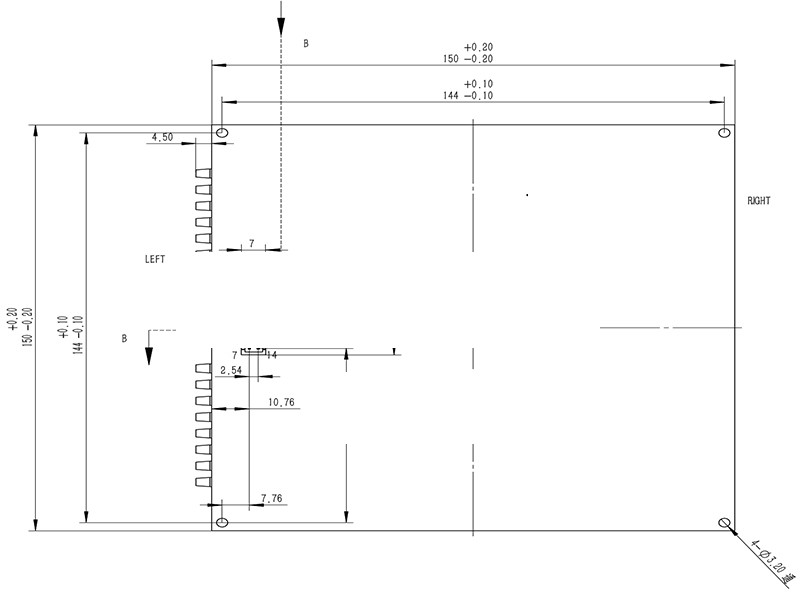

8×8 OXC MEMS Optical Swtich
 |
 |

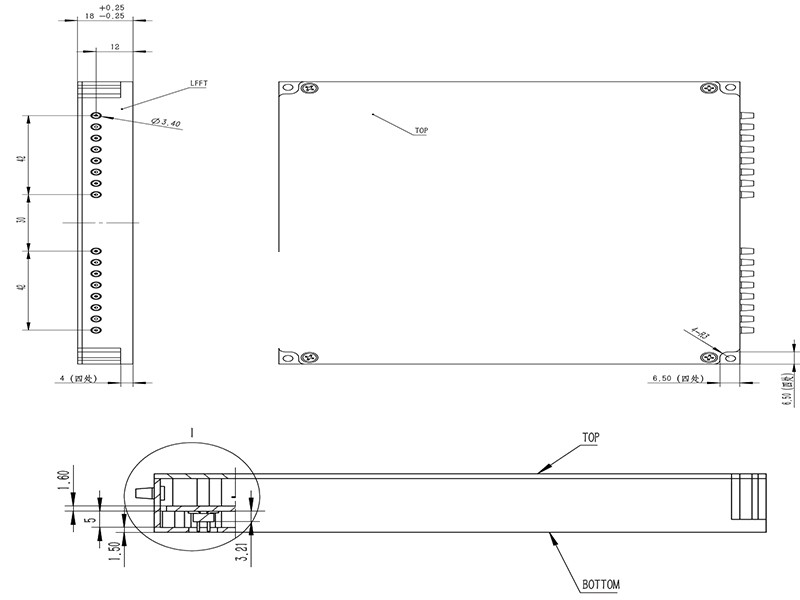

16×16 OXCMEMS Optical Swtich

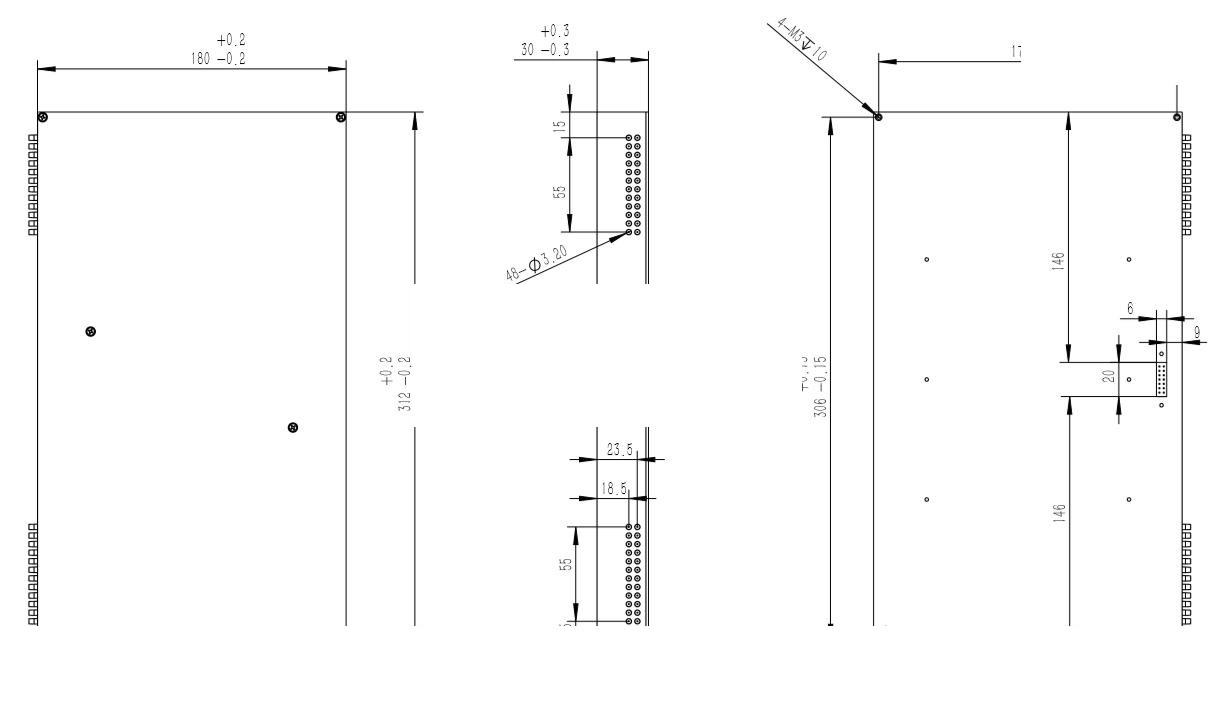

24x 24 OXCMEMS Optical Swtich
