Product Overview
MTP/MPO Trunk Cable
Pre-connector MTP/MPO Trunk Cable Assemblies are made up of 12, 24, 48 fiber LSZH jacketed micro cables terminated at both ends with MTP/MPO Connectors (without pins). These are used as backbone or horizontal cable interconnections . These plug and play solutions with micro core cable maximize bend radius and minimize cable weight and size. MTP/MPO Trunk Cable are factory pre-terminated, tested and packed along with the test reports. These assemblies are available in OM3, OM4 and SM fiber. Standard lengths of 5, 10, 25 meters are available. Custom lengths are also available on request. The MTP/MPO Trunk cables are packed as coils in lengths up to 50m long and on reels . OM3 and OM4 cables are available in aqua and SM cables are in yellow color.
Performance Specifications
|
MPO Connector |
Standard SM MT Ferrule |
Low Loss SM MT Ferrule |
Standard MM MT Ferrule |
Low Loss MM MT Ferrule |
|||
|
Polish |
APC |
PC |
APC |
PC |
PC |
PC |
|
|
IL(dB) |
Typical |
0.50 |
0.50 |
0.3 |
0.3 |
0.5 |
0.3 |
|
Maximun |
0.70 |
0.70 |
0.5 |
0.5 |
0.7 |
0.5 |
|
|
Return Loss（dB） |
60 |
45 |
60 |
45 |
20 |
20 |
|
|
Exchangeability(dB） |
≤0.3 |
||||||
|
Durability（dB） |
≤0.2dB (500 Matings,per EIA-455-21A) |
||||||
|
Tensile Strength（dB） |
≤0.3dB (Max 66N) |
||||||
|
Operating temperature（℃） |
-20~+60 |
||||||
|
Storage temperature（℃） |
-40~+80 |
||||||

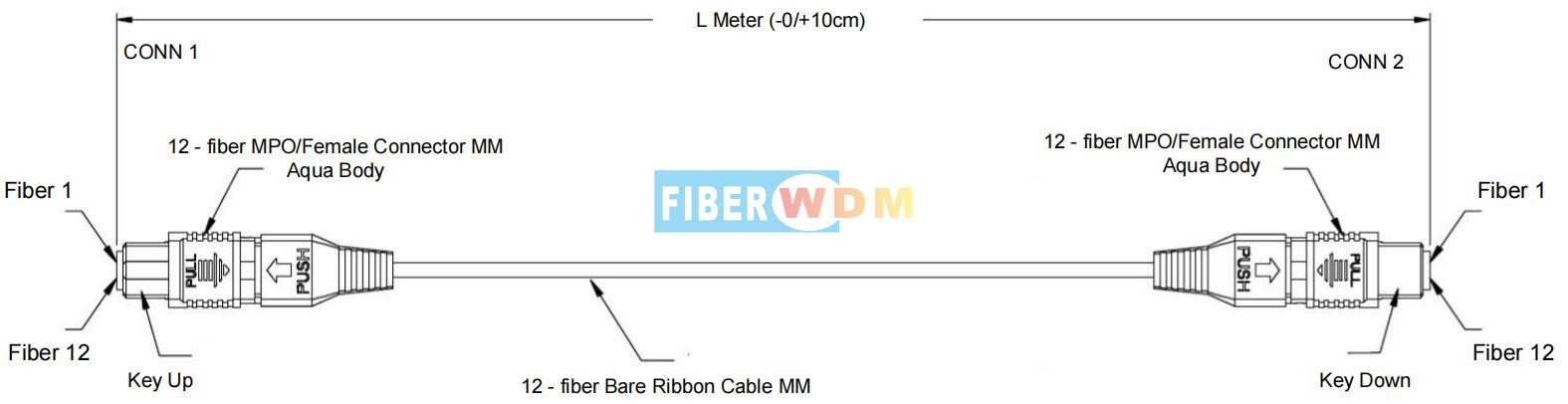

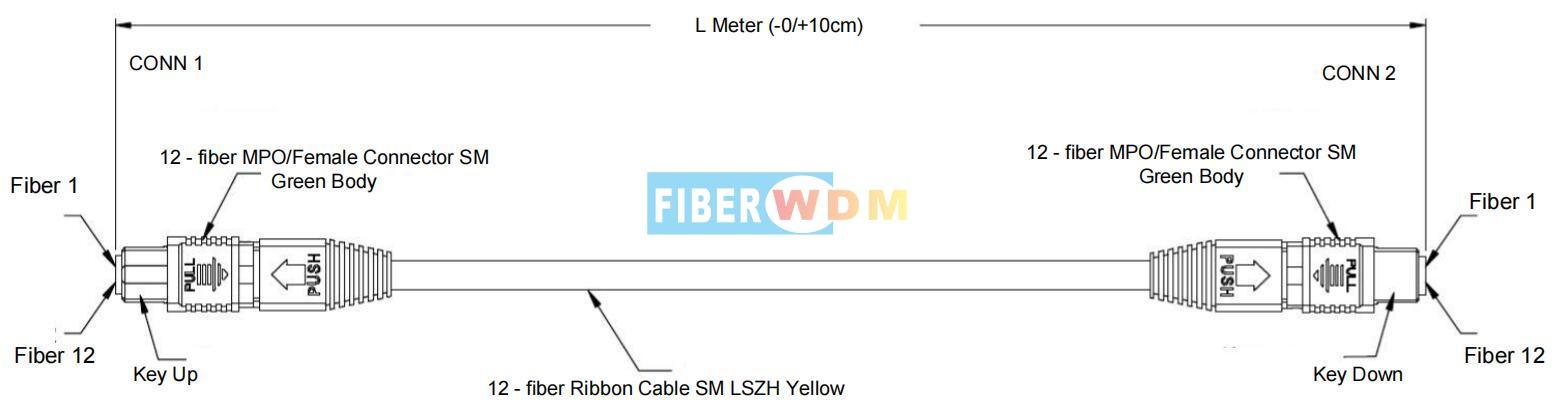

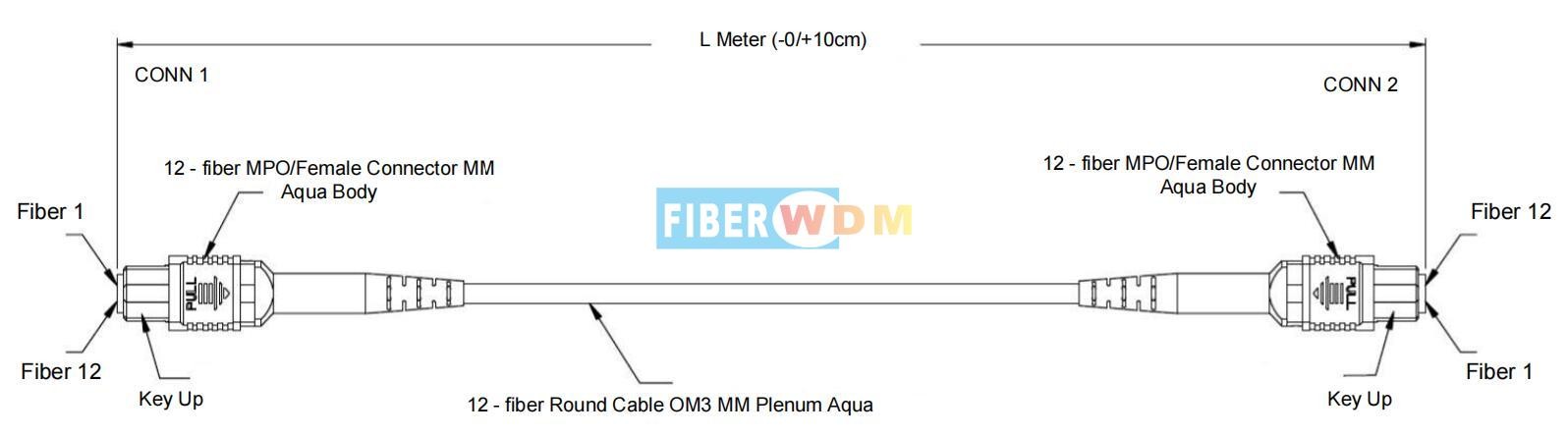

Assembly Structure Illustration
Polarity A: Straight Through
|
CONN 1 Fiber Number |
Fiber 1 |
Fiber 2 |
Fiber 3 |
Fiber 4 |
Fiber 5 |
Fiber 6 |
Fiber 7 |
Fiber 8 |
Fiber 9 |
Fiber 10 |
Fiber 11 |
Fiber12 |
|
Buffer Color |
Blue |
Orange |
Green |
Brown |
Grey |
White |
Red |
Black |
Yellow |
Violet |
Rose |
Aqua |
|
CONN2 Fiber Number |
Fiber 1 |
Fiber 2 |
Fiber 3 |
Fiber 4 |
Fiber 5 |
Fiber 6 |
Fiber 7 |
Fiber 8 |
Fiber 9 |
Fiber 10 |
Fiber 11 |
Fiber12 |
Polarity B: Cross
|
CONN 1 Fiber Number |
Fiber 1 |
Fiber 2 |
Fiber 3 |
Fiber 4 |
Fiber 5 |
Fiber 6 |
Fiber 7 |
Fiber 8 |
Fiber 9 |
Fiber 10 |
Fiber 11 |
Fiber12 |
|
Buffer Color |
Blue |
Orange |
Green |
Brown |
Grey |
White |
Red |
Black |
Yellow |
Violet |
Rose |
Aqua |
|
CONN2 Fiber Number |
Fiber 12 |
Fiber 11 |
Fiber 10 |
Fiber 9 |
Fiber 8 |
Fiber 7 |
Fiber6 |
Fiber 5 |
Fiber 4 |
Fiber 3 |
Fiber 2 |
Fiber 1 |
Polarity C: Cross Pair
|
CONN 1 Fiber Number |
Fiber 1 |
Fiber 2 |
Fiber 3 |
Fiber 4 |
Fiber 5 |
Fiber 6 |
Fiber 7 |
Fiber 8 |
Fiber 9 |
Fiber 10 |
Fiber 11 |
Fiber12 |
|
Buffer Color |
Blue |
Orange |
Green |
Brown |
Grey |
White |
Red |
Black |
Yellow |
Violet |
Rose |
Aqua |
|
CONN2 Fiber Number |
Fiber 2 |
Fiber 1 |
Fiber 4 |
Fiber 3 |
Fiber 6 |
Fiber 5 |
Fiber 8 |
Fiber 7 |
Fiber 10 |
Fiber 9 |
Fiber 12 |
Fiber 11 |
Order information
|
MPO CONN 1 |
MPO CONN2 |
Fiber Count |
Cable Diameter |
Cable Length |
Fiber Type |
Polarity |
||
|
Female |
UPC |
Female |
UPC |
8 |
Cable Ø 3.0mm |
0.5m |
SM G652A |
Polarity A |
|
male |
APC |
male |
APC |
12 |
Cable Ø 4.5mm |
1.0m |
SM G657A |
Polarity B |
|
24 |
Cable Ø 5.0mm |
2.0m |
MM OM2 |
Polarity C |
||||
|
48 |
Specify |
3.0m |
MM OM3 |
|||||
|
Specify |
Specify |
MM OM4 |
||||||
|
Specify |
||||||||
Note:the colors and type of the connector and cable are standard, If want other specify please contact us.
