MPO-LC Adapter Device
1U MPO-to-duplex-LC adapter chassis for converting 10 x 40G/100G MPO links to 40 x 10G/25G duplex LC links.
Communication Products
Product Overview
The MPO-LC Adapter Device converts multiple MPO/UPC interfaces into duplex LC/UPC interfaces in a compact 1U chassis. It is suitable for 40G/100G to 10G/25G structured cabling conversion, high-density optical patching, and equipment-room interconnection.
A typical configuration provides 10 channels of MPO/UPC input for 40G or 100G services and 40 channels of duplex LC/UPC output for 10G or 25G services, making the device practical for data-center access, aggregation and transmission system cross-connection.
Product Parameters
| Parameter | Single-mode | Multi-mode |
|---|---|---|
| Conversion | 10 x MPO/UPC (40G/100G) to 40 x duplex LC/UPC (10G/25G) | |
| Insertion Loss | Low insertion-loss adapter path | Low insertion-loss adapter path |
| Return Loss | SMF grade return-loss performance | MMF grade return-loss performance |
| Fiber Type | Single-mode fiber | Multi-mode fiber |
| Mating Durability | 500 cycles | |
| Tensile Strength | Designed for stable rack cabling and patching operation | |
| Operating Temperature | Typical equipment-room operating range | |
| Storage Temperature | Typical optical passive-device storage range | |

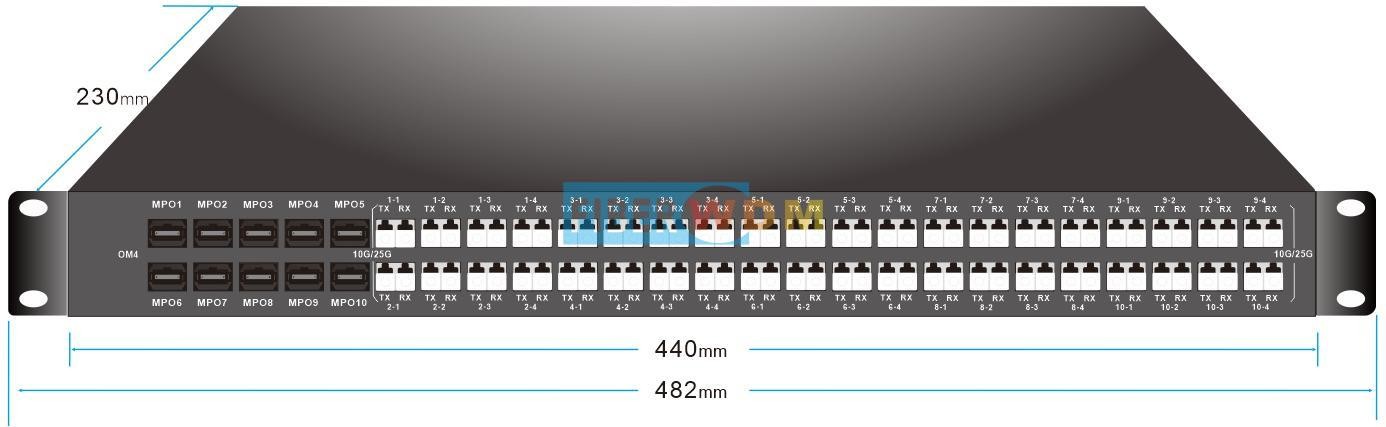

| Chassis Size | 19-inch 1U, 230 mm depth | |
Panel and Internal Connection

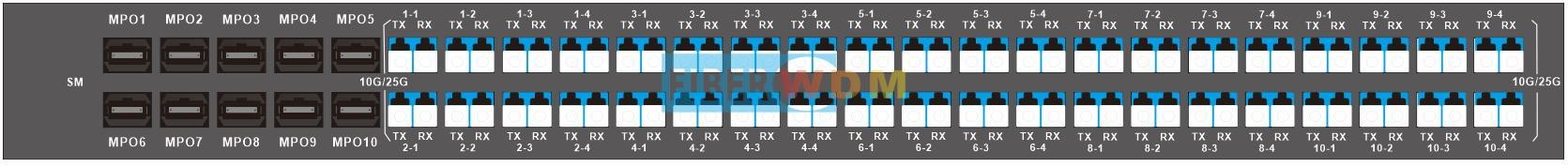

- MPO to LC single-mode adapter panel.

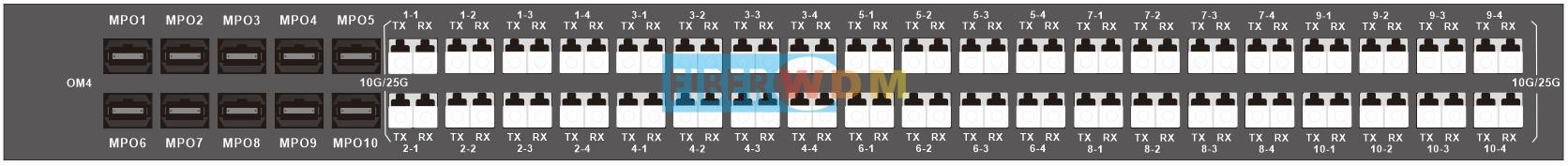

- MPO to LC multi-mode adapter panel.

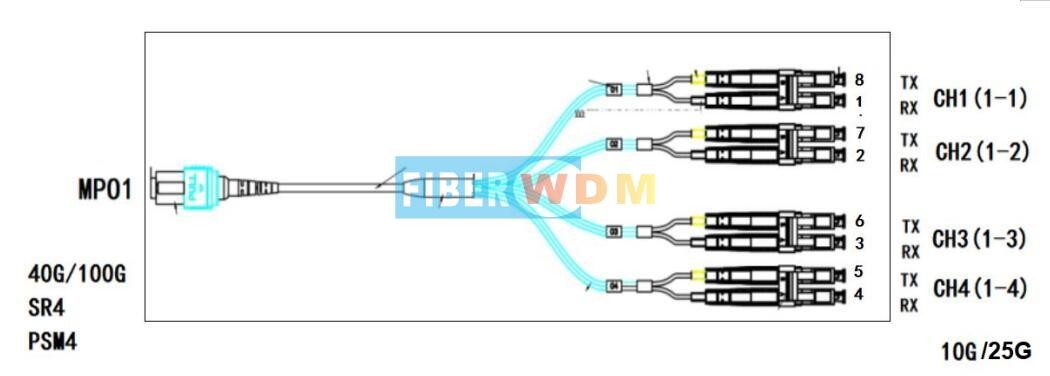

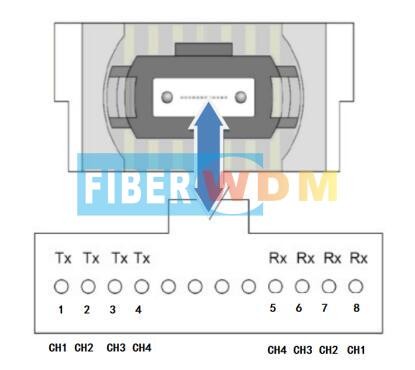

- Internal MPO-to-LC mapping for duplex LC breakout connections.
Ordering Information
| Product Model | Product Specification |
|---|---|
| MPO-LC Adapter Device | 10-way 40G/100G MPO to 40-way duplex LC adapter, 19-inch 1U chassis. |
