Optical Layer Transport Chassis
Integrated Optical Transport SystemFW6600
The networking is flexible, takes up less space, and has super scalability. Supports hot swapping of multiple mode business boards such as CWDM/DWDM/EDFA/OLPS/OTAP. Supports SDH, SONET, Ethernet, SAN, OTN, Video and other business access. Support single channe
Communication Products
Product Overview
- The networking is flexible, takes up less space, and has super scalability.
- Supports hot swapping of multiple mode business boards such as CWDM/DWDM/EDFA/OLPS/OTAP.
- Supports SDH, SONET, Ethernet, SAN, OTN, Video and other business access.
- Support single channel maximum rate 100G, 200G, 400G
- Supports multiple networking modes such as single-fiber unidirectional, single-fiber bidirectional, dual-fiber bidirectional chain, star, and ring.
- It supports client access from different manufacturers and interconnection with equipment from multiple manufacturers. It supports client equipment as single-mode (1310nm/1550nm), multi-mode (850nm/1310nm), electrical port (RJ45), etc. It can realize OADM optical add-drop multiplexing function, and the intermediate node can add and drop wavelengths.
- Supports a unified network management platform based on SNMP, and the network management methods include CLl (telnet and console), Web, and NetView (graphical interface).
- Supports 1+1 hot-swappable power supply and backup, AC and DC power supplies are optional.
Product Details
- Product Details
Integrated optical transmission system FW6600
The FW6600 series of integrated optical transmission systems is a new generation of large-capacity, multi-service access optical network platform launched by Stellars Fusion Technology. The platform has the characteristics of high business integration, high port density, rich service types, flexible configuration, etc., and supports SNMP protocol-based C/S or B/S The graphical management interface is structured to provide very clear fault location for management and maintenance, which can save maintenance costs; the platform is widely used in the fields of telecom operators, radio and television, electric power, education, cloud computing and information security. It is oriented to all-optical networks and has applications in national, inter-provincial and intra-provincial areas. The construction of trunk lines, local metropolitan area networks and various private networks; this platform has the characteristics of independent and transparent transmission signals, multiplexed signal transmission, saving optical fiber resources, and safety and reliability. It can help customers build a long-distance, highly reliable, safe, flexible, and disaster-resistant optical transmission network. It is currently the best solution to deal with the shortage of optical cable resources. C/SOr B/S architecture graphical management interface，for management、Maintenance provides very clear fault location，Saves maintenance costs;The platform is widely used by telecom operators、radio and television、electricity、educate、Cloud computing and information security and other fields，For all-optical networks，Applicationto the country、interprovincial、Provincial trunk lines，Construction of local metropolitan area network and various private networks;The platform is independent and transparent in transmitting signals，Multiple signal transmission，Save fiber resources，Safe and reliable features，Can help customers set up a long-distance、High reliability、Safe and flexible、Disaster-resistant optical transmission network，It is currently the best solution to deal with the shortage of optical cable resources.。
Product picture

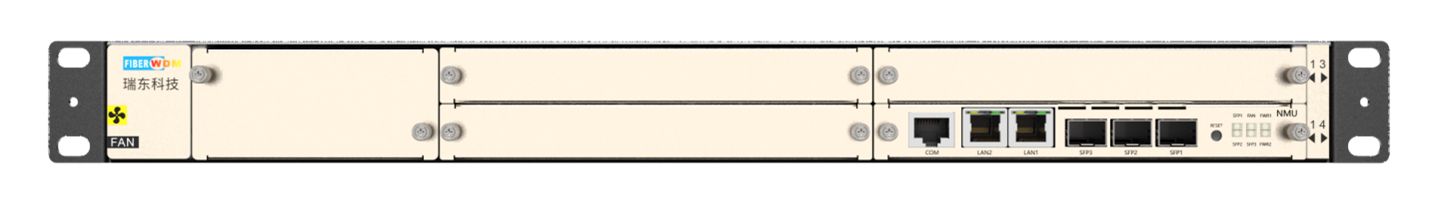

1U chassis front

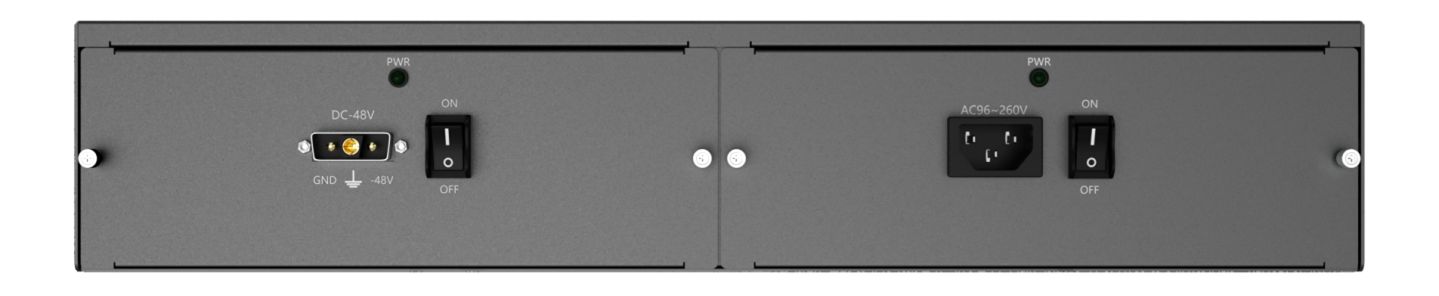

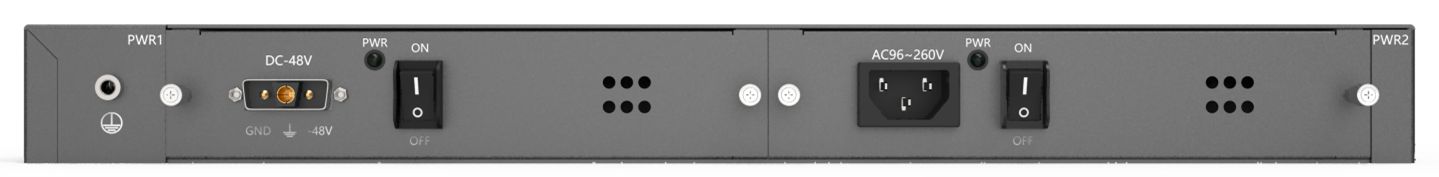

1U chassis back

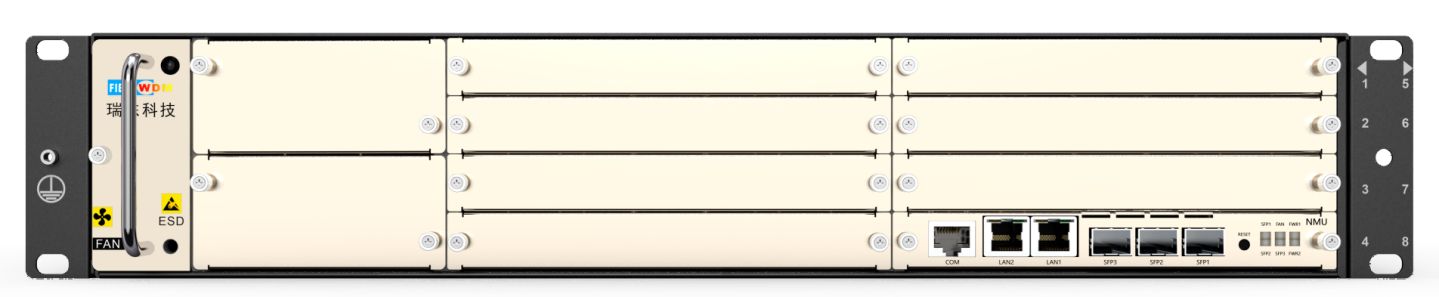

2U chassis front
2U chassis back

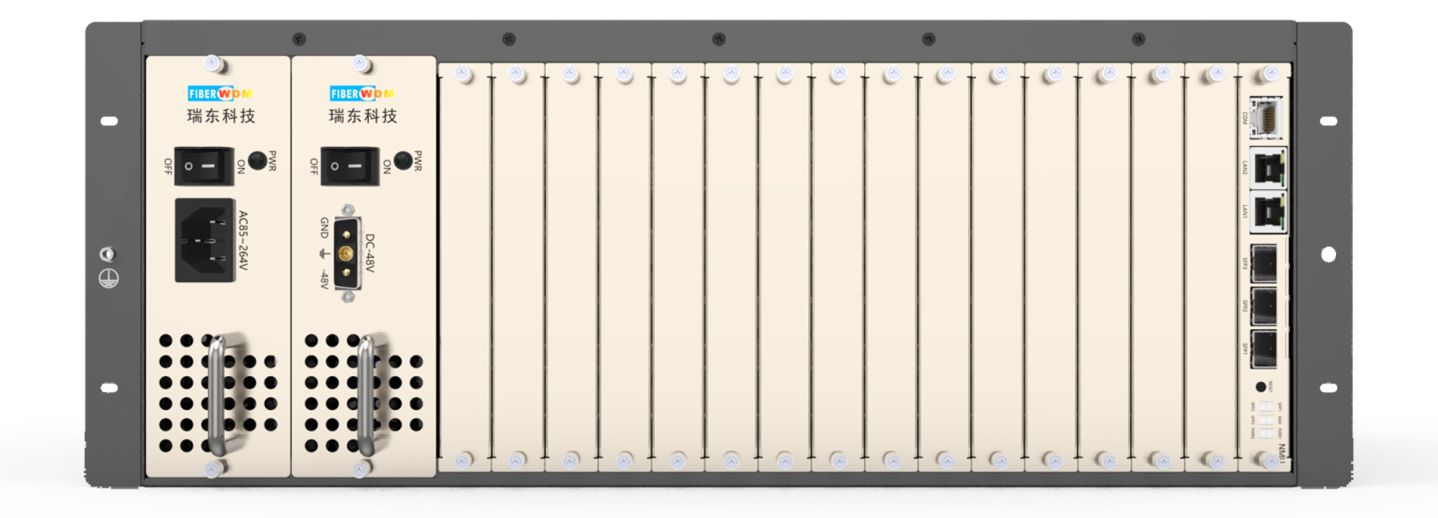

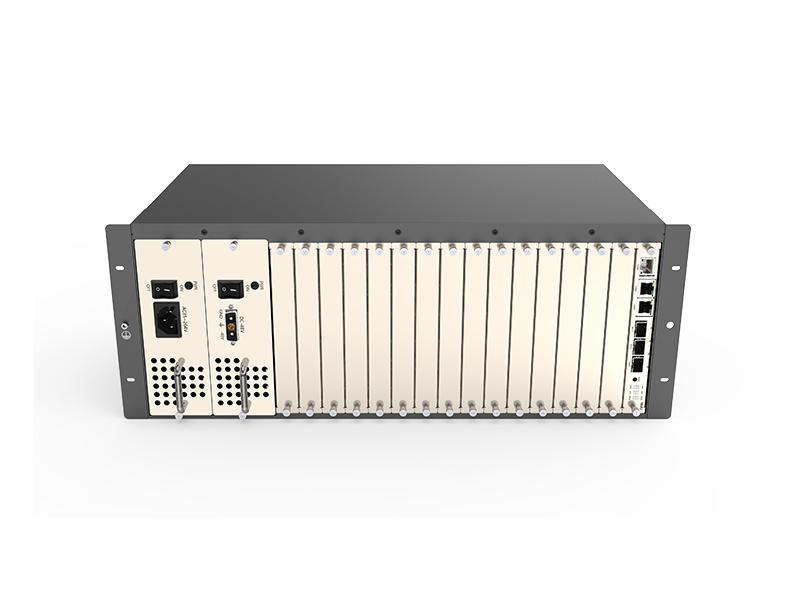

4U chassis front

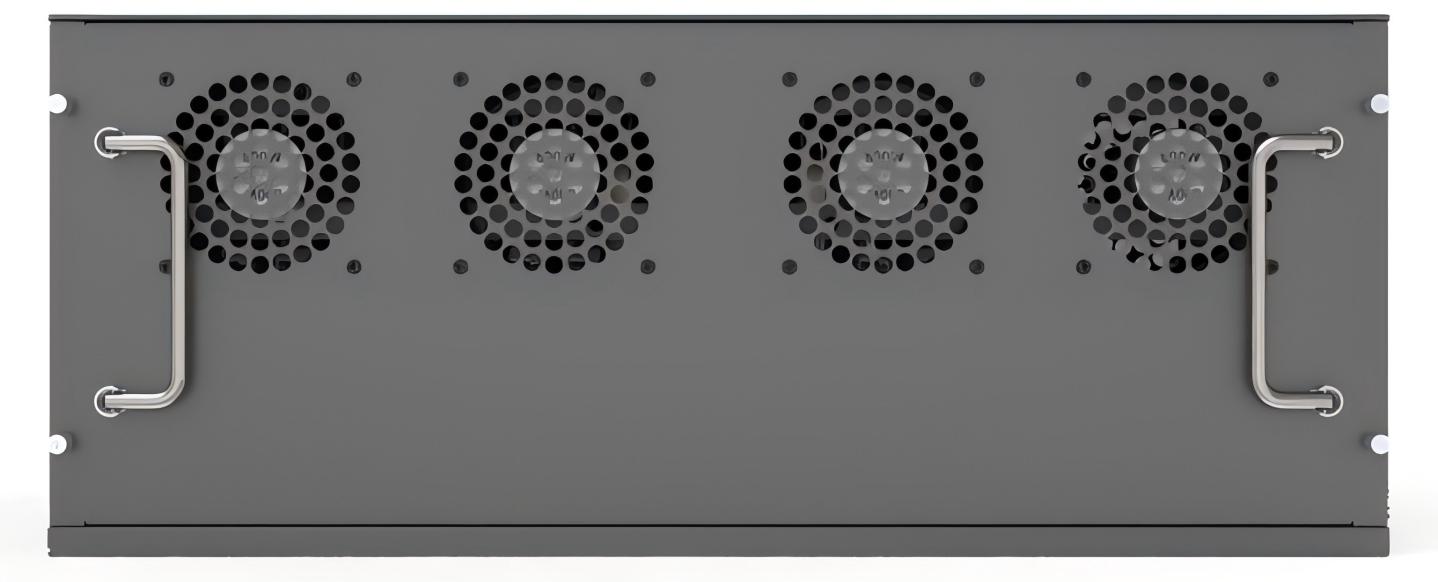

4U chassis back
Product Specifications
|
System parameters |
1U chassis |
2U chassis |
4U chassis |
|
|
Equipment size (mm) |
440(W)*44(H)*300(D)(mm) |
440(W)*88(H)*300(D)(mm) |
440(W)*177(H)*265(D)(mm) |
|
|
Business slot |
4 slots |
8 slots |
16 slots |
|
|
Power consumption |
<120W |
<200W |
<300W |
|
|
Wavelength range |
DWDM:1529.16nm~1567.14nm CWDM:1271nm~1611nm |
|||
|
channel spacing |
50/100 GHz fixed 37.5-400 GHz flex-grid |
|||
|
Support business types |
SDH, SONET, Ethernet，SAN，OTN，Video |
|||
|
Single channel maximum rate |
100G, 200G, 400G |
|||
|
Optical interface transmission method |
Adopting 2R transmission mode, each channel supports transparent transmission at a rate between 32M~111.81Gbit/s; Adopting 3R transmission mode, each channel rate supports 155Mbit/s, 622Mbit/s, 1.25Gbit/s, 2.488Gbit/s, 4GFC, 8GFC, 10GFC, 11.3Gbit/s, 25Gbit/s, 40Gbit/s, 56Gbit/s, 100Gbit/s, 200Gbit/s, 400Gbit/s, etc. optional; |
|||
|
Network topology |
Point-to-point, chain, star, ring, ring-belt chain, tangent ring and mesh networking |
|||
|
Network management method |
CLI、 NetView、Web |
|||
|
environment Require |
working temperature |
-10℃~50℃ |
||
|
Storage temperature |
-40℃~80℃ |
|||
|
relative humidity |
5%~95% no condensation |
|||
|
Power requirements (standard values) |
AC power supply (AC) voltage range: supports 90V~264V 50/60Hz Direct current power supply (DC) voltage range: Support – 36V~60V |
|||
|
Safety and EMC |
Comply with FCC, UL, CE, TUV, CSA standards |
|||
Ordering information
|
Product model |
Product Description |
|
FW6600A |
1U 4-slot business board, dual power supply slots, with fan unit, with dual AC power supply 100~240V or dual direct power supply 36~72V 440(W)*44(H)*300(D)(mm) 4Slot service board，Dual power supply slots，With fan unit, With dual cross power supply 100~240VOr dual direct power supply 36~72V 440(W)*44(H)*300(D)(mm) |
|
FW6600B |
2U 8-slot business board, dual power supply slots, with fan unit, with dual AC power supply 100~240V or dual direct power supply 36~72V 440(W)*88(H)*300(D)(mm) 8Slot service board，Dual power supply slots，With fan unit, With dual cross power supply 100~240VOr dual direct power supply 36~72V 440(W)*88(H)*300(D)(mm) |
|
FW6600C |
4U 16-slot business board, dual power supply slots, with fan unit, with dual AC power supply 100~240V or dual direct power supply 36~72V 440(W)*177(H)*265(D)(mm) 16Slot service board，Dual power supply slots，With fan unit, With dual cross power supply 100~240VOr dual direct power supply 36~72V 440(W)*177(H)*265(D)(mm) |
