FW6100G4SQ 4X QSFP28 100G OTU/OEO Service Card
Supports single- and multi-mode wavelength conversion, optical power amplification and other applications. Supports one-way relay amplification or two-way relay amplification. Supports 2-channel 100G bidirectional service access or 4-channel 100G unidirectiona
Communication Products
Product Overview
- Supports single- and multi-mode wavelength conversion, optical power amplification and other applications.
- Supports one-way relay amplification or two-way relay amplification.
- Supports 2-channel 100G bidirectional service access or 4-channel 100G unidirectional service access.
- Supports multiple client-side service access: 100GBASE-SR4/CWDM4/LR4/PSM4/OTU4.
- Transparent business transmission.
- Supports hot plugging.
- Supports FEC function, which can optimize output, DDM signal monitoring, and link detection (no light will be emitted when there is no receiving light).
- Supports a unified network management platform based on SNMP, network management methods CLI (telnet and console), Web, NetView (graphical interface)
Product Details
- Product Details

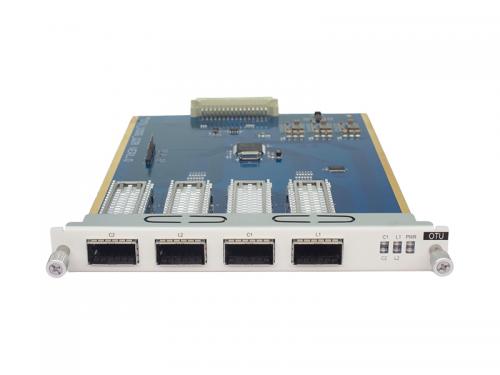

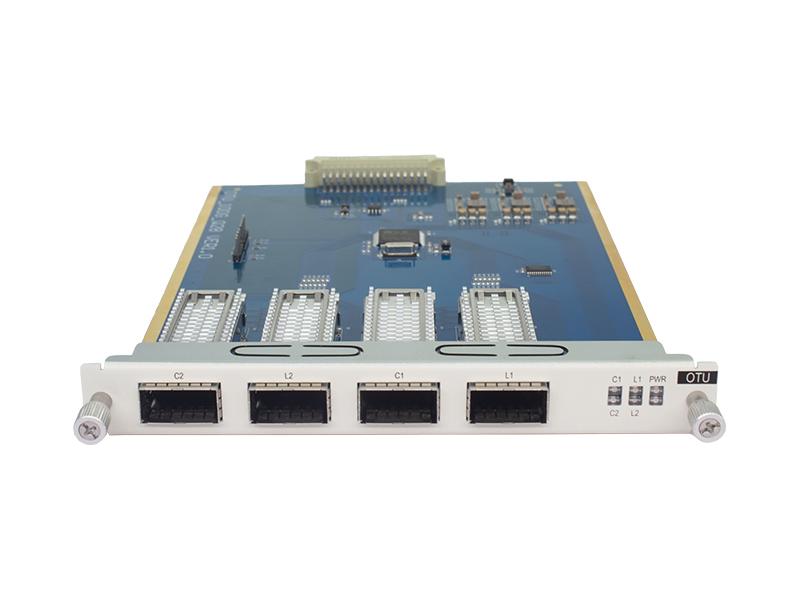

FW6100G4SQ 4X QSFP28 100G OTU/OEO Business board
The 100G OTU/OEO optical amplifier board is a 100G signal amplifier developed by Ruidong and designed for optical fiber links. It uses the optical-electrical-optical conversion principle to regenerate optical signals and can be converted into DWDM standard wavelength optical signals. It can be used with DWDM multiplexer/demultiplexer to achieve wavelength division multiplexing transmission, providing a high-quality solution for transmission lines where optical fiber resources are in short supply and optical fiber line losses are large.
|
|

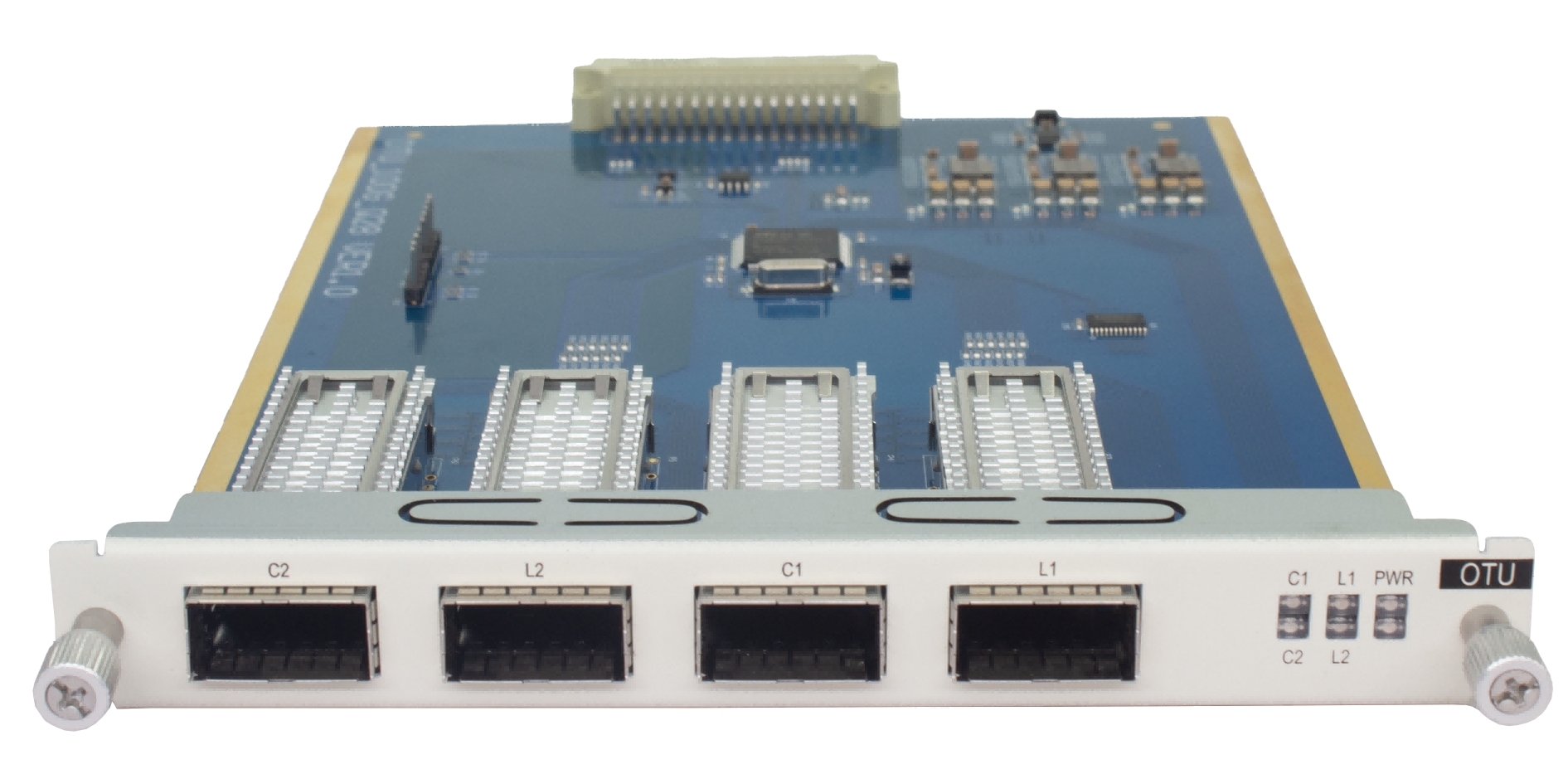

Figure 1 100G OTU optical amplifier board
Product Specifications
|
System parameters |
Technical indicators |
|
|
maximum capacity |
4*100G one-way transmission |
|
|
Wavelength range |
CWDM: 1271 ~ 1611nm, multi-mode: 850nm, single-mode: 1310nm DWDM: C-Band (100GHZ or 50GHZ) |
|
|
Service access type |
SDH、SONET、Ethernet、SAN、OTN、Video |
|
|
Board size |
156（W）× 20（H）× 225（D）（mm） |
|
|
Environmental requirements |
working temperature |
-10℃ ~ 50℃ |
|
Storage temperature |
-40℃ ~ 80℃ |
|
|
relative humidity |
5% ~ 95% no condensation |
|
|
Safety and EMC |
Comply with FCC, UL, CE, TUV, CSA standards |
|
|
Power consumption |
<16W |
|
