FTTA DLC-DLC-UPC SM 2C 5.0 Armored Cable
Outdoor FTTA armored duplex fiber cable assembly with DLC/UPC connectors, LSZH jacket and reinforced branch structure.
Communication Products
Product Overview
DLC/UPC-DLC/UPC-SM-2C-LSZH-5.0mm-ARMORED
Product Description
DLC/PC-DLC/PC-SM(G657A2)-DX-5.0mm-LSZH-XXM
Main cable armord,2.0mm branch cable, One side Non-armored branch with M28 plastic Gland And stoppers. The other side (side B) armorde branch with mesh Kevlar to increase tensile strength.
Product Structure
|
No. |
Element |
Qty/Unit |
Requirements |
|
1 |
2 Pcs |
LC/UPC Dulpex SM 2.0mm Connector |
|
|
2 |
Break Out Cable (A) |
2 Pcs |
OD 2.0mm Black simplex cable tube |
|
3 |
Hot shrink sleeve |
1 Pcs |
adhensive hot shrink sleeve |
|
4 |
Cable |
1Pcs |
OD 5.0mm LSZH Black G675A2 Duplex Armored cable |
|
5 |
Hot shrink sleeve |
1 Pcs |
adhensive hot shrink sleeve |
|
6 |
Break Out Cable (B) |
2Pcs |
OD 2.0mm Black simplex cable tube |
|
7 |
Connector |
2Pcs |
LC/UPC Dulpex SM 2.0mm Connector |
|
8 |
Identifier |
2 Pcs |
A/B White Identifier |
|
9 |
Identifier |
2 Pcs |
A/B White Identifier |
|
Fiber Chart crossed |
|
|
From side A |
From side B |
|
A |
B |
|
B |
A |

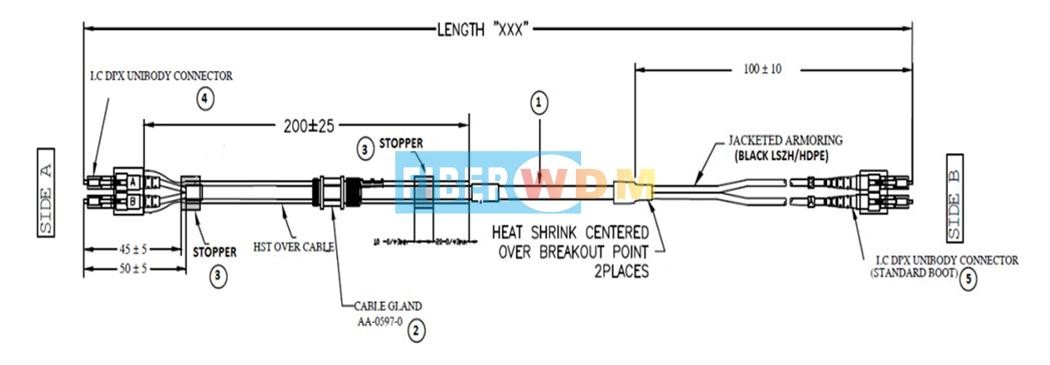

Parts list
|
# |
Item Description |
QTY |
|
1 |
Flexible armored cable |
1 |
|
2 |
Gland (Ceragon p/n AA-0597-0) |
1 |
|
3 |
Stopper. OD- 11.5±0.3mm |
2 |
|
4 |
Micro LC Duplex Unibody connector – gland side |
1 |
|
5 |
Standard LC Duplex Unibody connector – non-gland side |
1 |
Cable Index

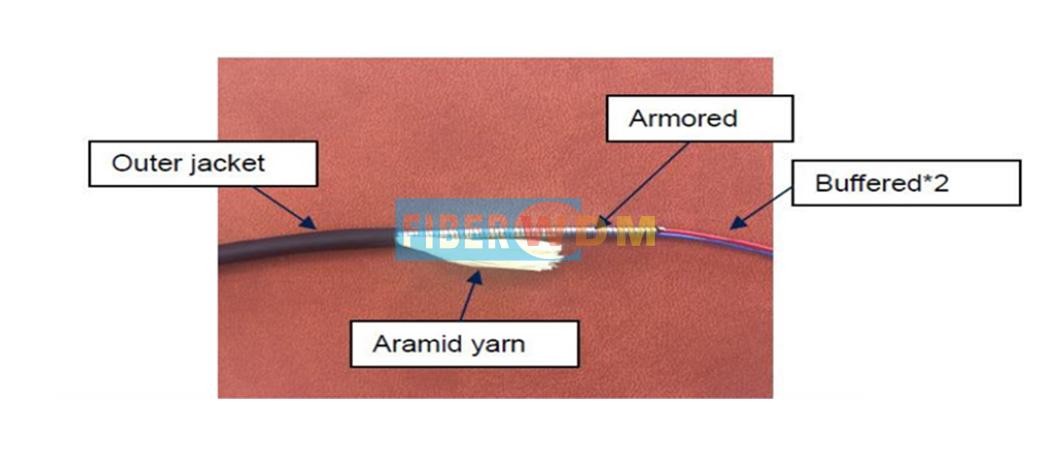

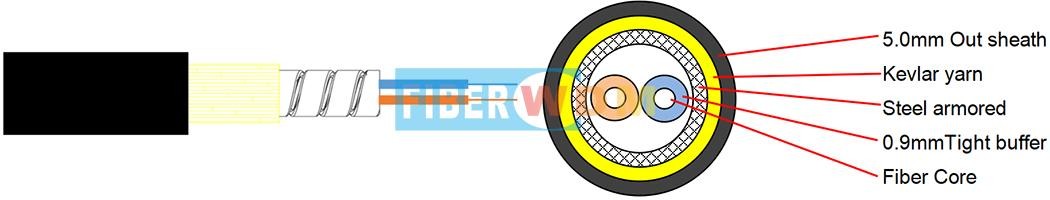

Cable structure drawing
Cable Characteristic
|
Technical Parameters: |
|||||||||
|
Out Diameter |
Inner
Diameter
|
Weight |
Minimum allowable Tensile Strength
(N)
|
minimum allowable Crush Load
（N/100mm)
|
Minimum Bending Radius
(MM)
|
Storage
temperature
|
|||
|
(MM) |
(MM) |
(KG)/KM |
short term |
long term |
short term |
long term |
short term |
long term |
（℃） |
|
5.0±0.2 |
0.9 |
40.00 |
1200 |
500 |
2000 |
1000 |
20D |
10D |
-20+75 |
G657A2 Fiber Characteristic
|
Item |
Parameter |
|
Fiber Type |
9/125 um |
|
Core Diameter |
9 um |
|
Core Non-Circularity |
≤1.0 % |
|
Cladding Diameter |
125.0±0.7um |
|
Cladding Non-Circularity |
≤0.7 % |
|
Coating Diameter |
245±5 um |
|
Coating-Cladding Concentricity Error |
≤12.0um |
|
Coating Non-Circularity |
≤6.0um |
|
Core-Cladding Concentricity Error |
≤0.5um |
|
Attenuation @1310nm |
≤0.35dB/km |
|
Attenuation @1550nm |
≤0.21dB/km |
|
PMD |
≤0.1[ps／km] |
|
Mode field diameter (MFD)@1310nm |
8.4-9.2um |
|
Mode field diameter (MFD)@1550nm |
9.3-10.3um |
|
Effective group index of refraction (Neff)@1310nm |
1.466 |
|
Effective group index of refraction (Neff)@1550nm |
1.467 |
|
Point discontinuities@1310nm |
≤0.5db |
|
Point discontinuities@1550nm |
≤0.5db |
|
Macro-bend induced attenuation |
|
|
10 turns around a mandrel of 15 mm radius@1550nm |
≤0.03db |
|
1 turns around a mandrel of 10mm radius@1550nm |
≤0.1db |
|
1 turns around a mandrel of7.5 mm radius@1550nm |
≤0.2db |
Optical Characteristic
|
Item |
Parameter |
|
Connector Type |
LC/UPC-LC/UPC |
|
Insertion Loss |
≤0.2dB |
|
Return Loss |
≤50dB |
|
Fiber Mode |
SM/G657A2 |
|
Operating Wave Length |
1310nm, 1550nm |
|
Test Wave Length |
1310nm, 1550nm |
|
Repeatably |
≤0.1 |
|
Interchangeability |
≤0.2dB |
|
Durability |
≤0.2dB |
|
Fiber Length |
1m, 2m…any length optional. |
|
Tolerance |
+100nm / -0mm @ L=1~10m |
|
+200nm / -0mm @ L=10~50m |
|
|
+500nm / -0mm @ L＞50m |
|
|
Operating Temperature |
-40℃~ +80℃ |
|
Storage Temperature |
-40℃~ +60℃ |
|
Installation Temperature |
-20℃~ +60℃ |
Mechanical Specifications
Physical Characteristic
|
Item |
Parameter |
|
Cable Core |
2 |
|
Diameter |
5.0mm Armored (outside with LSZH) |
|
0.9mm tight buffer |
|
|
Weight |
40g/M |
|
Tensile Strength |
1000N (short term) |
|
500N (long term) |
|
|
Crush Load |
2000N/100mm (short term) |
|
1000N/100mm (long term) |
|
|
Bending Radius |
20D mm（Static） |
|
10D mm（Dynamic） |
