DWDM R B filter, Red and Blue band Component
Stellar Fusion 1×2 DWDM Red/Blue Band Filter is a passive micro optics component based on environmentally stable thin film filter technology. It is mainly used to separate or combine Red band wavelength signals and Blue band wavelength signals in C Band, in single fiber Bi-directional DWDM systems and high power amplification system. The components are characterized with wide passband, low insertion loss, high return loss, excellent environmental stability and high power handling capability.
Stellar Fusion provides customized band filters and connectors to meet special control and applications. The filter units are available with steel tubes, 2-slot 1U rack mounts, Pluggable Module, or ABS boxes.

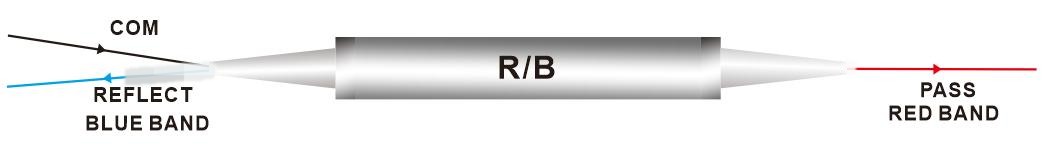

R/B Type A

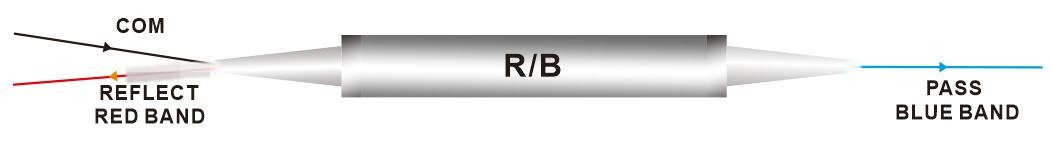

R/B Type B
Specifications
|
Operation waves |
RED 1562.23~1546.92nm BLUE 1543.73~1528.77nm |
Technology |
TFF (Thin Film Filter) |
|
IL@ Pass Band |
≤0.6dB |
IL@Reflect Band |
≤0.8dB |
|
Isolation @ Pass Band |
≥30dB |
Isolation @ Reflect Band |
≥15dB |
|
Directivity |
≥50 |
Return Loss |
≥50 |
|
Polarization dependent loss |
≤0.1dB |
Polarization mode dispersion |
≤0.1ps |
|
Directivity |
≥50dB |
Return loss |
≥45dB |
|
Optical power handling |
≥500 |
Temperature |
Operating:-40 to +85℃ Storage:-40 to +85℃ |
|
Fiber type |
SMF-28e |
Package dimension |
f∮5.5 xL34mm |
*. All the specifications are based on the devices without connector
**.Specifications are subject to change without notice.

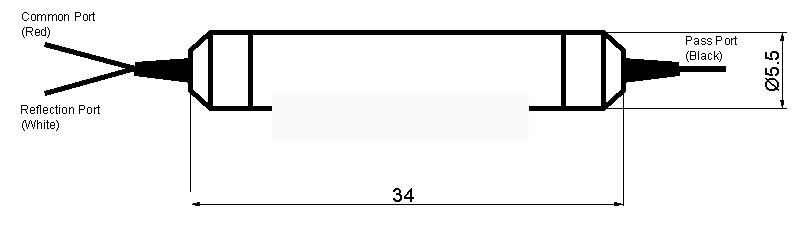

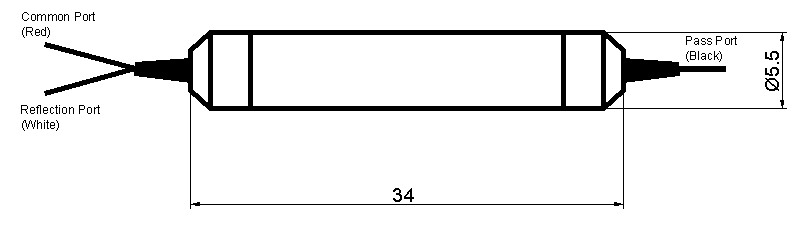

Dimensions drawing（mm）
Order information
|
RD- |
– Package |
-Connector Type |
U/A |
-RB |
-Fiber Type |
-Fiber Length |
-A/B |
|
S: Steel |
0: No connector |
U: UPC |
25: 250um Fiber |
005: 0.5+/-0.1m |
A: A Type |
||
|
G:Glass |
1: LC |
A: APC |
90: 900um Fiber |
01: 1.0+/-0.1m |
B: A Type |
||
|
others |
2: SC |
others |
others |
||||
|
3: FC |
|||||||
|
4: Others |
