CWDM Mux Demux

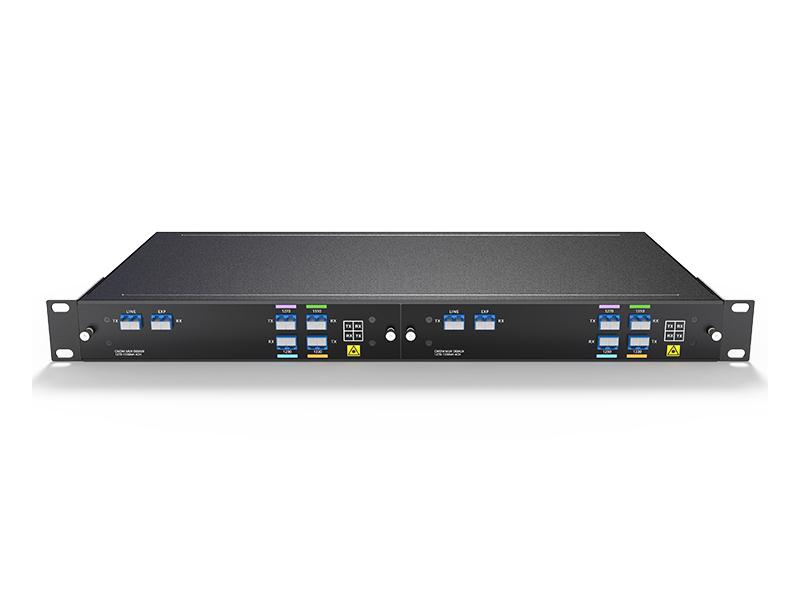

Dual Fiber 4CH 1270-1330nm CWDM MUX DEMUX With EXP, LC/UPC, Plug-in LGX Box and 2slot 1U Rack
Efficient Transmission: It supports 4 channels of 100G signals with dual - fiber transmission, offering a large capacity and a transmission distance of up to 10 km. Scalable: Equipped with an expansion port, it can increase network capacity without the need fo
Communication Products
Product Overview
- Efficient Transmission: It supports 4 channels of 100G signals with dual – fiber transmission, offering a large capacity and a transmission distance of up to 10 km.
- Scalable: Equipped with an expansion port, it can increase network capacity without the need for new optical fibers.
- Easy Installation: The plug – in LGX box is designed to fit into a 2 – slot 1U rack.
- Excellent Performance: With a wavelength range of 1270 – 1330nm, it has multiple good – performing indicators and can adapt to a wide temperature range.
- Wide Application: It is suitable for multiple industries, especially in areas with scarce optical fiber resources.
- Customization – friendly: Customized designs are available. You can contact us via email for more details.
Product Details
- Product Details
Dual Fiber 4CH 1270-1330nm CWDM MUX DEMUX With EXP, LC/UPC, Plug-in LGX Box and 2slot 1U Rack
The 4ch CWDM MUX DEMUX is designed by Stellars Fusion, wavelength from 1270nm to 1330nm, and it is passive CWDM and plug-in LGX box, can plug in 2slot 1u rack, support 4channels 100G in two optical fiber for point-to-point transmission.
It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries, where the optical fiber resource are rare.

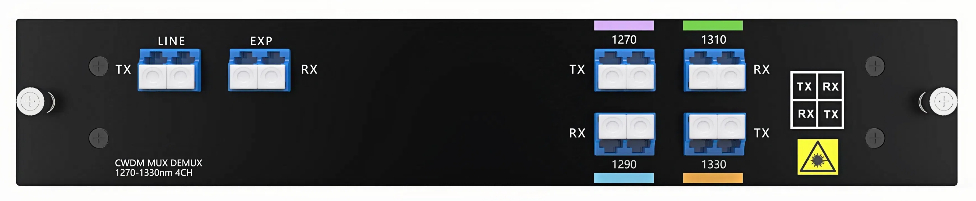

Product Panel
4CH CWDM MUX DEMUX Dual Fiber
Expansion Port for Future Bandwidth Increasing, makes it possible to increase the network capacity by connecting it to the line port of another CCWDM MUX/DEMUX supporting different wavelengths, without the need of installing or leasing additional fibers.

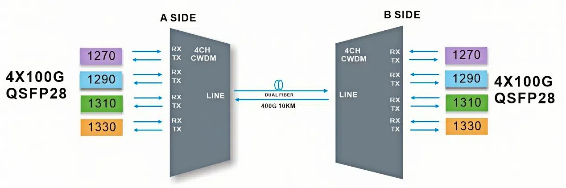

Line Link
400G Solution: 4CH 100G CWDM MUX DEMUX Dual fiber transmission
The total transmission capacity of 4 channels of 100G signals . These signals, after being multiplexed by a Coarse Wavelength Division Multiplexing (CWDM) multiplexer in the wavelength range of 1270-1310nm, can be transmitted over two fibers, with a transmission distance of up to 10 kilometers.
Product Specification
Wavelength
4channels 1270-1330nm
Channel Spacing
20nm
Channel Passband
±6.5nm
Technology
TFF (Thin Film Filter)
Insertion Loss
≤ 1.5dB
Center Wavelength Accuracy
±0.05nm
Return Loss
≥ 45dB
Directivity
≥ 45dB
Polarization Mode Dispersion
≤ 0.1ps
Polarization Dependent Loss
≤ 0.3dB
Channel Isolation
Adjacent ≥30dB
Temperature
Operating -40 to 85°C
Storage -40 to 85°C
Net Weight
LGX BOX 0.5KG
2Slot 1u Rack 1.5KG
Dimensions (HxWxD)
LGX BOX 220*200*39mm
2Slot 1u Rack 44*440*230mm
Non-adjacent ≥ 45dB
Note: Specified with connectors.
Package Information
Plug-in LGX Box

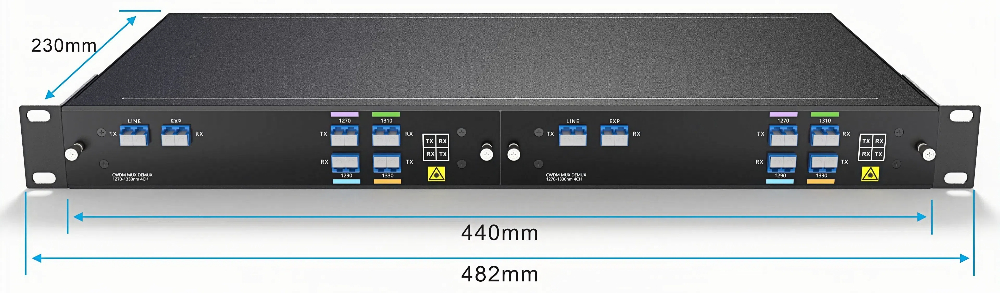

2-Slot 1U Rack for LGX BOX
Order Information
Product No.
Product description
CMD8-1U01-2733
CWDM MUX DEMUX 4CH (1270nm~1330nm) With EXP, Dual fiber, LC/UPC , Plug-in LGX Box
1U02-2LGX
19” inch 1U rack with 2 slot for Plug-in LGX box, 440*230*44mm
RQ-100G-LR1-27
100G Transceiver QSFP28 1271nm CWDM 10KM DDM
RQ-100G-LR1-29
100G Transceiver QSFP28 1291nm CWDM 10KM DDM
RQ-100G-LR1-31
100G Transceiver QSFP28 1311nm CWDM 10KM DDM
RQ-100G-LR1-33
100G Transceiver QSFP28 1331nm CWDM 10KM DDM
Note: We Support Customized Design, please contact us by email.
