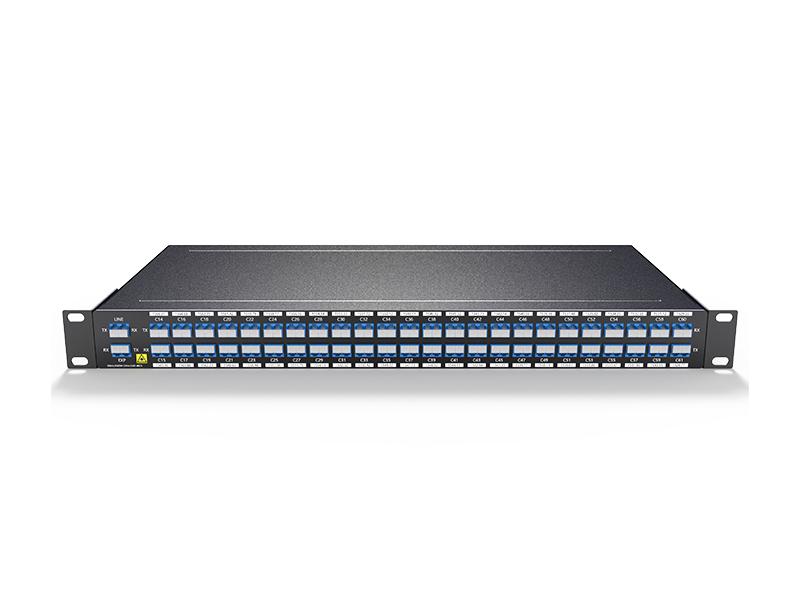

Dual Fiber 48CH C14-C61 50GHz DWDM MUX DEMUX, With EXP Port For Expanding H14-H61, LC/UPC, 1U Rack
The 40ch 50Ghz DWDM MUX DEMUX is designed by Stellars Fusion , wave length from C21 to C60(1560.61nm~1529.55nnm), in accordance with the ITU-T G.694.1 100GHZ grid, it maximizes the capacity of the C-band range. And we also provide EXP port to expand H14~H61 in
Communication Products
Product Overview
The 40ch 50Ghz DWDM MUX DEMUX is designed by Stellars Fusion, wavelength from C21 to C60(1560.61nm~1529.55nnm), in accordance with the ITU-T G.694.1 100GHZ grid, it maximizes the capacity of the C-band range. And we also provide EXP port to expand H14~H61 in the future.
The 48ch DWDM is totally passive DWDM device, and support low insertion loss( wavelength ports＜7.0dB). And it conjunct with The DWDM amplifiers and DCM device, the 40ch DWDM transfer system can support a long distance transmission.
Product Details
- Product Details
Dual Fiber 48CH C14-C61 50GHz DWDM MUX DEMUX, With EXP Port
For Expanding H14-H61, LC/UPC, 1U Rack

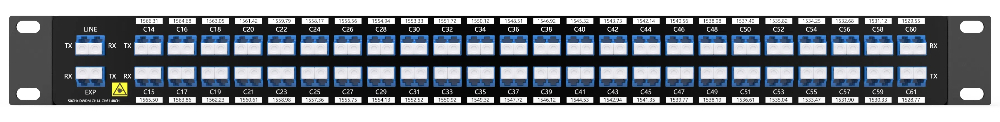

Product Panel
48CH DWDM MUX DEMUX
- EXP port can support Export 48ch, 50Ghz DWDM H14~H61 in the future.

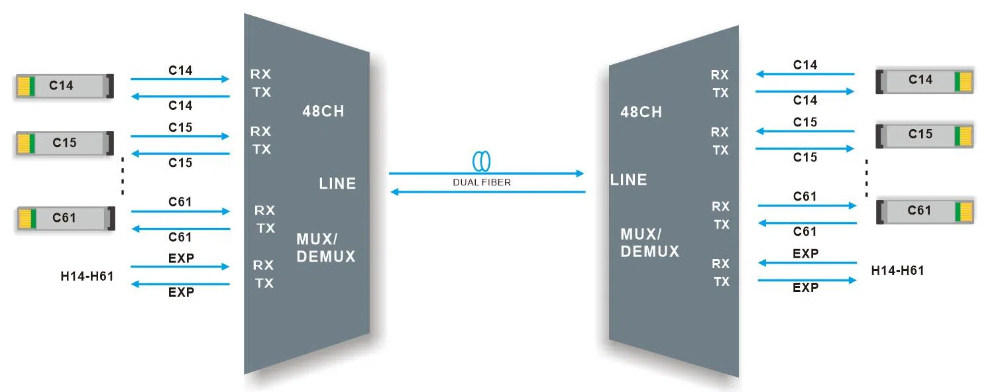

Line Link
40CH DWDM MUX DEMUX Dual fiber transmission
48 Channels DWDM MUX DEMUX , supports 40 channels difference business in two optical fiber for point-to-point transmission.
It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.
Product Specification
Wavelength
40channels C21-C60
Channel Spacing
50GHz (0.4nm)
Channel Passband
±0.11nm
Technology
AAWG (Flat-top)
Insertion Loss
≤ 7.0dB
Link Loss
≤ 14dB
Center Wavelength Accuracy
±0.12nm
1dB Bandwidth
≥ 0.3nm
3dB Bandwidth
≥ 0.5nm
20 dB bandwidth
≤ 1.3nm
Return Loss
≥ 40dB
Ripple
≤ 0.1dB
Insertion Loss Uniformity
≤ 1.5dB
Polarization Mode Dispersion
≤ 0.5ps
Polarization Dependent Loss
≤ 0.8dB
Total Crosstalk
≥ 19dB
Chromatic Dispersion
±0.19dB
Channel Isolation
Adjacent ≥ 22dB
Channel Isolation
Non-adjacent ≥ 27dB
Temperature
Operating -5 to 65°C、Storage -40 to 85°C
Net Weight

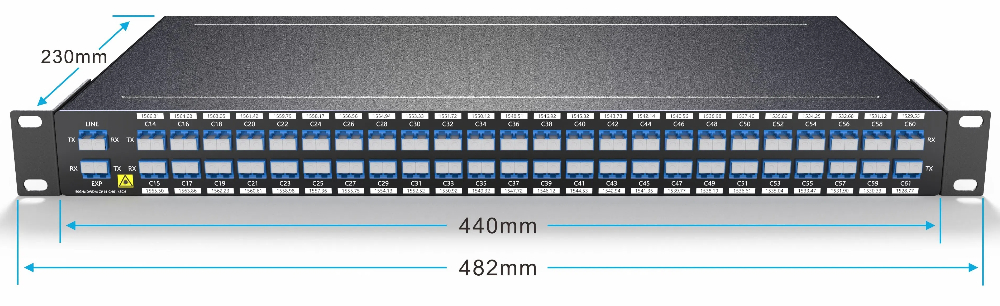

Dimensions (HxWxD)
Note: Specified with connectors.
Package Information
19” Inch 1U Rack
Order Information
|
Product No. |
Product description |
|
50G-DMD48-1U01-C146 |
50GHz DWDM MUX DEMUX 48CH (C14-C61) With EXP Port for expand H14-H61 , Dual fiber, LC/UPC , 1U Rack |
Note: We Support Customized Design, please contact us by email.
