Passive Dispersion Compensation DCM
DCM Dispersion Compensation Module
DWDM system wide-band dispersion compensation and extremely low residual dispersion G.652 fiber C-band 100% slope compensation (standard value) Low insertion loss Low polarization mode dispersion Available in different packaging styles, connector types and jum
Communication Products
Product Overview
- DWDM system wide-band dispersion compensation and extremely low residual dispersion
- G.652 fiber C-band 100% slope compensation (standard value)
- Low insertion loss
- Low polarization mode dispersion
- Available in different packaging styles, connector types and jumper lengths
Product Details
- Product Details
DCM dispersion compensation module – single-mode fiber C-band 100% slope compensation
The single-mode fiber C-band 100% slope compensation module (dispersion compensation module DCM) can perform wide-band dispersion and dispersion slope compensation for standard single-mode fiber (G.652) in the C-band, optimizing the system residual dispersion. This module is based on mature and reliable optical fiber technology and can improve the performance of optical transmission systems.
The dispersion value range of the dispersion compensation module at 1550nm wavelength can reach -10 to -2100ps/nm. Modules with special requirements for center wavelength and dispersion can also be provided.
product panel
 |

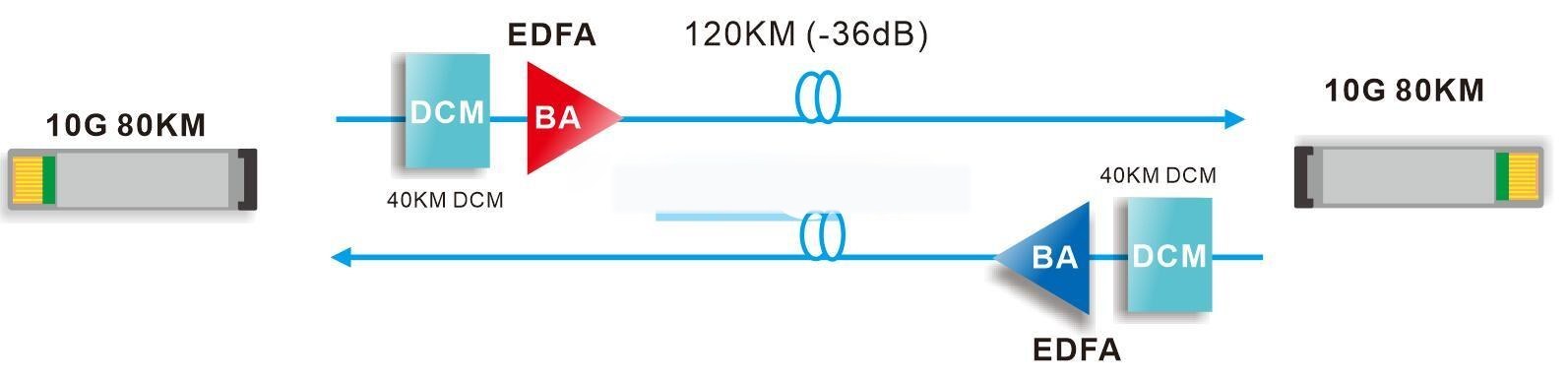

ProductApplication
- G.652 standard single-mode fiber optic long-distance and metro communications systems
- DWDM transmission system
- SDH transmission system
- CATV cable television system
- Dispersion adjustment
Product Specifications
|
parameter |
unit |
numerical value |
|||
|
mim |
typical |
max |
|||
|
dispersion value |
10KM |
ps/nm |
-320 |
-318 |
-340 |
|
20KM |
-336 |
-330 |
-346 |
||
|
40KM |
-650 |
-670 |
-690 |
||
|
60KM |
-970 |
-1000 |
-1030 |
||
|
80KM |
-1300 |
-1340 |
-1380 |
||
|
100KM |
-1630 |
-1680 |
-1730 |
||
|
120KM |
-1950 |
-2010 |
-2070 |
||
|
central wavelength |
nm |
|
1550.12 |
|
|
|
Reflection bandwidth |
nm |
|
0.4 |
|
|
|
20KM |
dB |
|
|
3.5 |
|
|
40KM |
|
|
5.2 |
||
|
60KM |
|
|
6.8 |
||
|
80KM |
|
|
8.0 |
||
|
100KM |
|
|
9.5 |
||
|
120KM |
|
|
11.5 |
||
|
Polarization mode dispersion |
ps |
|
|
1.0 |
|
|
Polarization dependent loss |
dB |
|
|
0.5 |
|
|
Wavelength stability |
nm |
|
|
0.07 |
|
|
Package |
LGX box |
||||
|
2-slot 1U chassis |
|||||
Product size
|

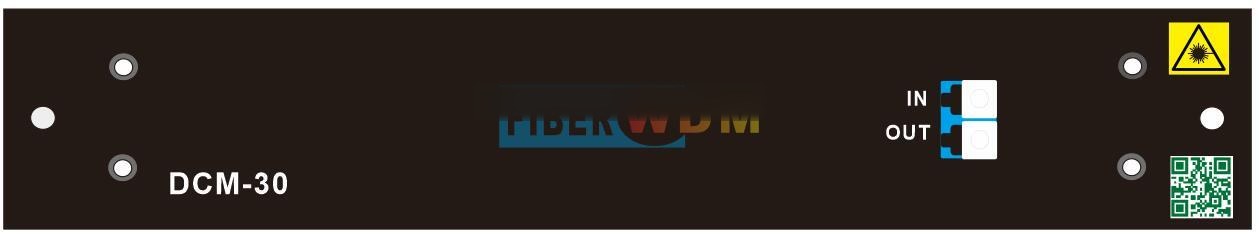

DCM LGX module |
2-slot 1U chassis, can accommodate 2 DCM modules |
Ordering information
|
Product model |
product description |
|
DCM-10KM |
DCM 10KM LC/UPC LGX Box |
|
DCM-20KM |
DCM 20KM LC/UPC Plug-in LGX Box |
|
DCM-30KM |
DCM 30KM LC/UPC Plug-in LGX Box |
|
DCM-40KM |
DCM 40KM LC/UPC Plug-in LGX Box |
|
DCM-60KM |
DCM 60KM LC/UPC Plug-in LGX Box |
|
DCM-80KM |
DCM 80KM LC/UPC Plug-in LGX Box |
|
DCM-100KM |
DCM 100KM LC/UPC Plug-in LGX Box |
|
DCM-120KM |
DCM 120KM LC/UPC Plug-in LGX Box |
|
1U02-2LGX |
19” inch 1U rack with 2 slot for Plug-in LGX box, 440*230*44mm |
