CCWDM Compact CWDM Mux/Demux Module
Stellar Fusionoffers a compact CWDM module that provides bandwidth capacity expansion for future network growth in one of the small packages. Its compact size and unique carrier tray set it apart,and can be installed ina variety of field situations.
The compact CWDM isbased on thin film filter technology andavailable in 4, 8,16,18-channel configurations, or the customer specified. Optical performance is excellent with low insertion loss and excellent temperature stability.
Specifications
|
Parameters |
1×4 |
1×8 |
1×16 |
1×18 |
|
|
Center Wavelength (nm) |
ITU, ITU+1 |
||||
|
Passband (nm) |
ITU±6.5 |
||||
|
Operating Wavelength (nm) |
1270~1610 |
||||
|
Channel Space (nm) |
20 |
||||
|
Fiber Type |
SMF-28e or customer specified |
||||
|
IL (dB) |
1.2 |
1.8 |
2.5 |
3.0 |
|
|
Isolation (dB) |
Adjacent Channel |
30 |
|||
|
Non-Adjacent Channel |
45 |
||||
|
Ripple (dB) |
0.3 |
||||
|
PDL (dB) |
0.2 |
||||
|
PMD (ps) |
0.1 |
||||
|
RL (dB) |
45 |
||||
|
Directivity (dB) |
50 |
||||
|
Maximum Optical Power (mw) |
500 |
||||
|
Operating Temperature(℃) |
-40～85 |
||||
|
Storage Temperature(℃) |
-40～85 |
||||
|
Package (mm) |
44*28*6.2 |
50x50x6 |
|||
Notes: 1) Stellar FusionSupport Customized Design, please contact us by emailsales@Stellar Fusion.com
2) If you want to order, please email us and tell us how many waves and which waves do you want, we will send you more detail datasheet which you want.

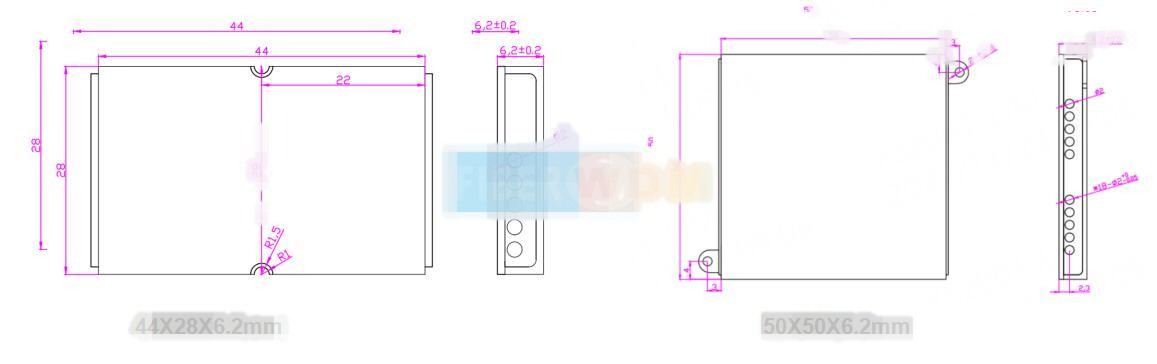

Package Dimension

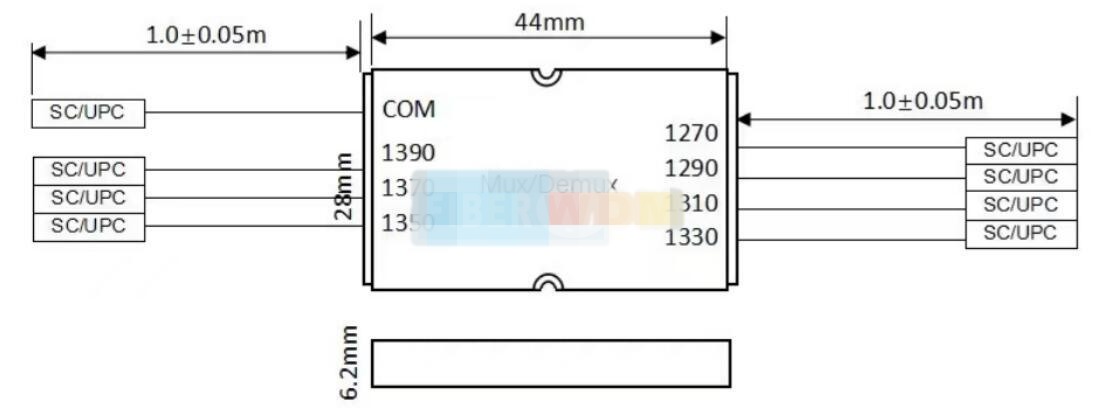

CCWDM MUX/ DEMUX Module
Note:Fiber diameter is be 0.9mm, Fiber length is 1M or others. Connector can be LC/SC/FC, or others. If you want to order, please check with us first.
