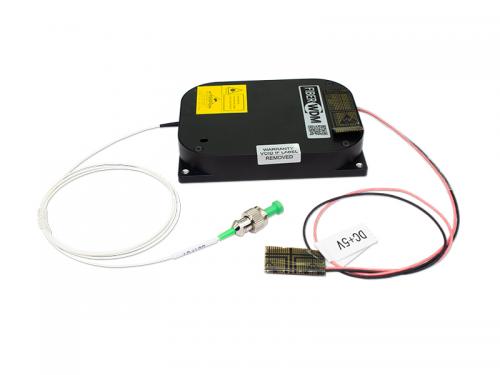

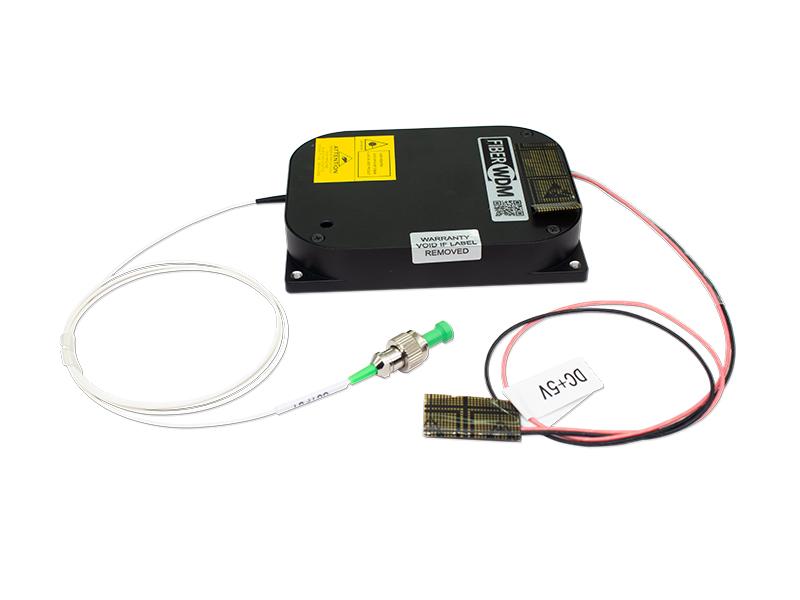

c-band ASE light source
RD-ASE-M3-C-1.5dB-23Bm-0.9L-1m-FC/APC
Optical parameters Specifications:
|
parameter |
smallest |
type |
maximum |
unit |
Remark |
|
spectrum shape |
– |
smooth |
– | – | – |
|
Working wavelength |
1527 | – | 1565 | nm | — |
|
Output power |
– | 23 | 23 |
dBm |
– |
|
Spectral width |
– | 38 | – | nm |
@+25℃ |
|
Spectral flatness |
– | 1.5 | 3.0 |
dB |
@+25℃、@output=23dBm |
|
short term power stability |
– | – |
0.05 |
dB |
@+25℃ |
|
Long term power stability |
– | – | – |
dB |
@+25℃ |
|
control mode |
APC | – | – | ||
Working environment:
|
parameter |
smallest |
type |
maximum |
unit |
Remark |
|
working temperature |
-10 | – |
+60 |
°C |
Temperature resistance ±2 |
|
Storage temperature |
-40 | – |
+85 |
°C |
Temperature resistance ±2 |
|
relative humidity |
5 | – | 90 |
% |
– |
Electrical properties:
smallest
power supply
+4.75
+5
+5.25
V
Power consumption at room temperature
W
Power consumption at full temperature
W
parameter
type
maximum
unit
Remark
–
–
–
10
–
–
–
15
–
interface:
Connector type: 26-pin connector
Needle
name
property
level
describe
VCC_3.3V
P
3.3v Power Supply
VCC_3.3V
P
3.3v Power Supply
GND
P
GND
GND
P
GND
NC
F
Reserved
NC
F
Reserved
NC
F
Reserved
NC
F
Reserved
Output_Alarm
O
LVTTL
Output Power Alarm
Input_Alarm
O
LVTTL
Input Power Alarm
PumpTem_Alarm
O
LVTTL
Pump Temperature Alarm
Pump_CurrentAlarm
O
LVTTL
Pump Current Alarm
NC
F
Reserved
ModuleTem_Alarm
O
LVTTL
Low Level Pump off
NC
F
Reserved
Pump-ON/OFF
F
OFF
Low Level Pump off
NC
F
Reserved
Reset
F
External Reset Input
GND
P
GND
GND
P
GND
RXD
I
RS232
Serial Data Input
TXD
O
RS232
Serial Data Output
GND
P
GND
GND
P
GND
VCC_3.3V
P
3.3v Power Supply
VCC_3.3V
P
3.3v Power Supply
1
–
2
–
3
–
4
–
5
–
6
–
7
–
8
–
9
10
11
12
13
–
14
15
–
16
17
–
18
–
19
–
20
–
21
22
23
–
24
–
25
–
26
–
Note 1: P: power; I: input; O: output; F: floating.
Note 2: Alarm information is triggered when all output alarm pins are low level.
Note 3: The external reset input is active low.
Note 4: 16-pin low level pump is off.

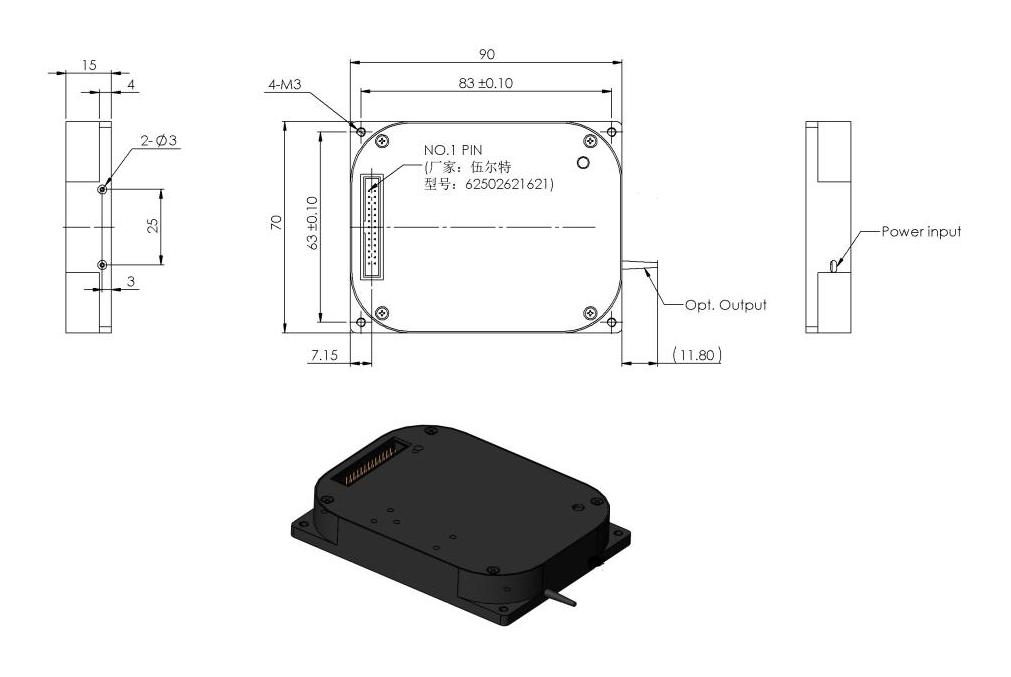

Mechanical structure:
Dimensions, length, width and height: 90*70*15mm±0.2mm
Pigtail:
|
project |
Specifications |
Remark |
| Fiber type |
SMF 900um |
|
| Fiber length |
1000±2mm super structure |
superstructure |
| fiber optic connector |
Input/Output: FC/APC |
|
Software parameter setting range and default state:
|
parameter |
smallest |
default value |
maximum |
unit |
|
High output optical power alarm threshold |
13 | 23.5 |
23.5 |
dBm |
|
Pump bias current |
– | – |
1.2*EOL Current |
mA |
|
Output optical power |
13 | 23 | 23 |
dBm |
|
Module high temperature alarm threshold |
50 | 80 | 80 |
℃ |
|
Pump switch status |
NC |
OFF |
NC |
– |
|
working mode |
NC |
APC |
NC |
– |
|
Default mode |
– | 23 | – |
dB |
Software parameter reading accuracy:
Pump bias current
0.1mA
Configure output optical power
0.1dBm
Module high temperature alarm threshold
0.1℃
Output temperature (pump)
0.1℃
parameter
- Serial communication protocol:
project
numerical value
unit
Transmission rate
9600
Bit/s
data bits
Bit
Stop bit
Bit
parity bit
default value
8
1
