8CH Dual-Fiber Bidirectional 1470nm~1610nm CWDM With Monitor Port LGX Box Module
CWDM MUX DEMUX, Multiplexing up to 8 Channels on Fiber Pair 1% Monitor Port for Signal Analyzing or Troubleshooting Passive, Protocol Transparent for Ethernet, FC, OTN, SONET/SDH, etc. Fully Compatible with All ITU-T 1G/10G/25G CWDM Optics Applied to Metro, Re
Communication Products
Product Overview
- CWDM MUX DEMUX, Multiplexing up to 8 Channels on Fiber Pair
- 1% Monitor Port for Signal Analyzing or Troubleshooting
- Passive, Protocol Transparent for Ethernet, FC, OTN, SONET/SDH, etc.
- Fully Compatible with All ITU-T 1G/10G/25G CWDM Optics
- Applied to Metro, Regional CWDM Networks
Product Details
- Product Details
Dual Fiber8CH 1470-1610nm CWDM MUX DEMUX With EXP and Monitor Port, LC/UPC, Plug-in LGX Box and 2slot 1U Rack

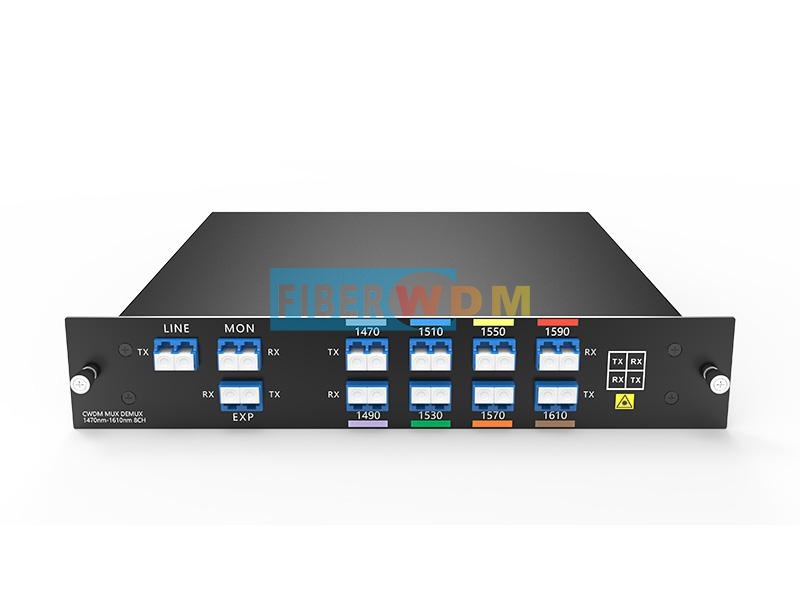

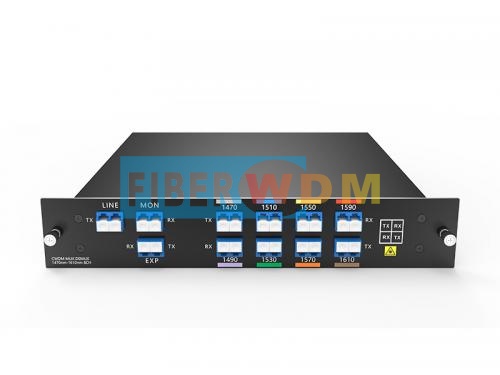

The 8ch CWDM MUX DEMUX is designed by Stellars Fusion, wavelength from 1470nm to 1610nm, and it is passive CWDM and plug-in LGX box, can plug in 2slot 1u rack, support 8 channels difference business in two optical fiber for point-to-point transmission.
It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries, where the optical fiber resource are rare.

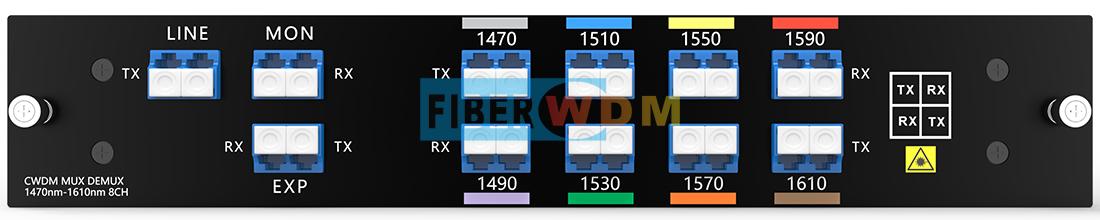

Product Panel
8CH CWDM MUX DEMUX Dual Fiber
Expansion Port for Future Bandwidth Increasing, makes it possible to increase the network capacity by connecting it to the line port of another CWDM MUX/DEMUX supporting different wavelengths, without the need of installing or leasing additional fibers.
Line Link

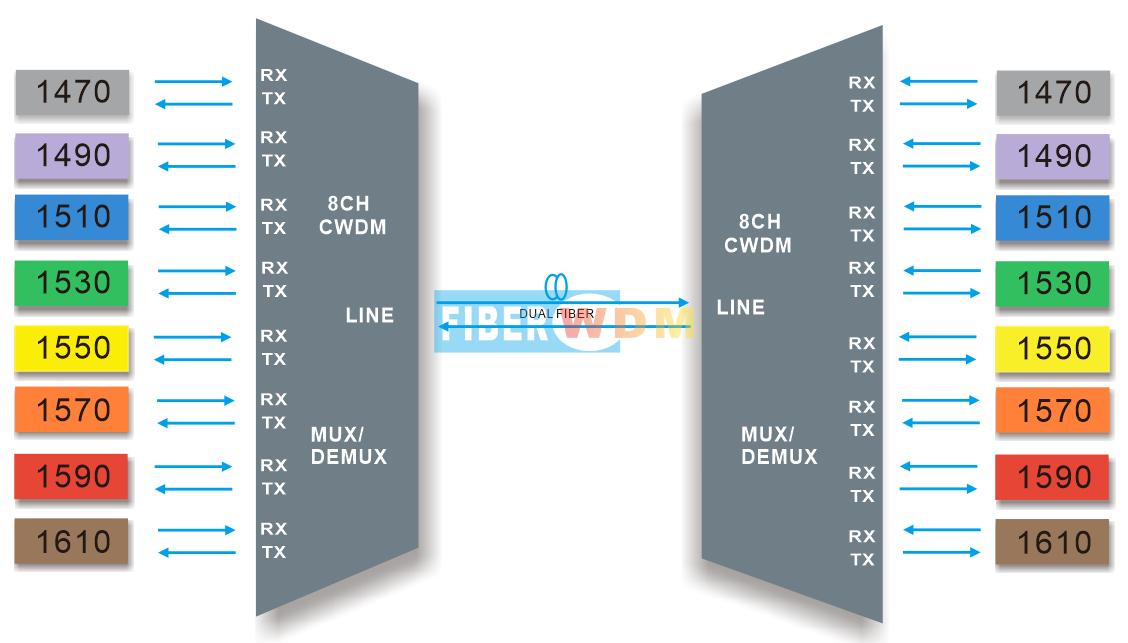

8CH CWDM MUX DEMUX Dual fiber transmission
8 Channel sCWDM MUX DEMUX, support 8 channels difference business,such applications as 1G/10G Ethernet, SDH/SONET and 8/4/2/1G, in two optical fiber for point-to-point transmission.
Product Specification
|
Wavelength |
8 channels 1470-1610nm |
Channel Spacing |
20nm |
|
Channel Passband |
±6.5nm |
Technology |
TFF (Thin Film Filter) |
|
Insertion Loss |
Regular :≤ 2.4dB |
Link Loss |
≤ 2.4dB |
|
Insertion Loss @ 1% Mon |
≤ 26dB |
Center Wavelength Accuracy |
±0.05nm |
|
Return Loss |
≥ 45dB |
Directivity |
≥ 45dB |
|
Polarization Mode Dispersion |
≤ 0.1ps |
Polarization Dependent Loss |
≤ 0.3dB |
|
Channel Isolation |
Adjacent ≥30dB
Non-adjacent ≥45dB
|
Temperature |
Operating -40 to 85°C Storage -40 to 85°C |
|
Net Weight |
LGX BOX 0.5KG 2Slot 1u Rack 2.5KG |
Dimensions (HxWxD) |

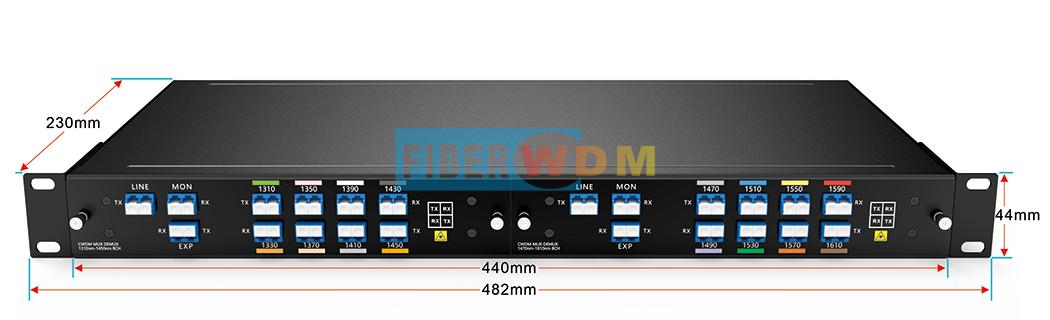

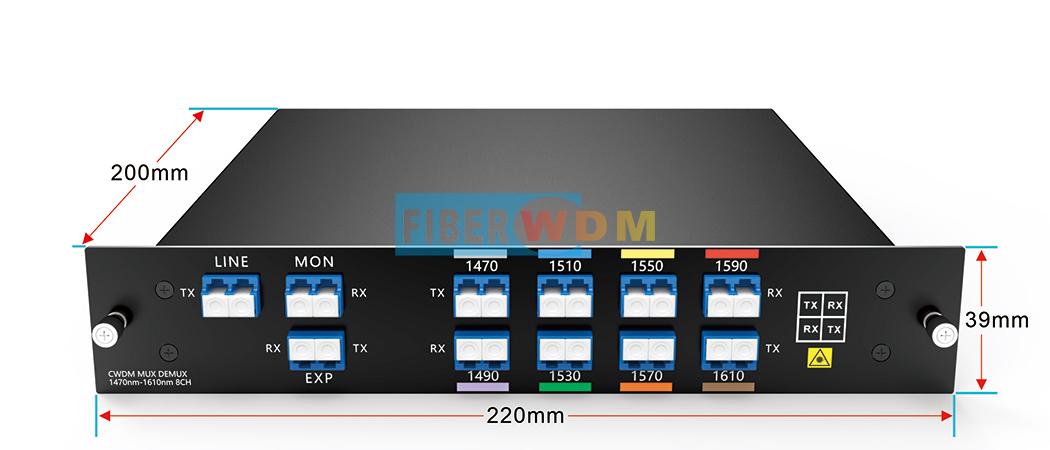

LGX BOX 190*200*39mm 2Slot 1u Rack 44*440*230mm |
Note: Specified with connectors.
Package Information
|
Plug-in LGX Box |
2-Slot 1U Rack for LGX BOX |
Order Information
|
Product No |
Product description |
|
CMD8-1U01-4761M |
CWDM MUX DEMUX 8CH (1470nm~1610nm) With EXP And Monitor Port, Dual fiber, LC/UPC , Plug-in LGX Box |
|
CMD8-1U01-xxxxM |
CWDM MUX DEMUX 8CH (xxxx-xxxx) With EXP And Monitor Port, Dual fiber, LC/UPC , Plug-in LGX Box (Customized) |
|
1U02-2LGX |
19” inch 1U rack with 2 slot for Plug-in LGX box, 440*230*44mm |
Note:We Support Customized Design, please contact us by email.
