40G QSFP+to4x10G SFP+ OTU Service Card

Communication Products

Product Overview




  • Support 100G<=>4X25G DWDM transmission.
  • A single board supports one channel of 40Gbit/s bidirectional service access.
  • Transparent business transmission.
  • Supports hot plugging.
  • Supports FEC function, which can optimize output, DDM signal monitoring, and link detection (no light will be emitted when there is no receiving light).
  • Supports a unified network management platform based on SNMP, and network management methods are CLl (telnet and console), Web, and NetView (graphical interface).

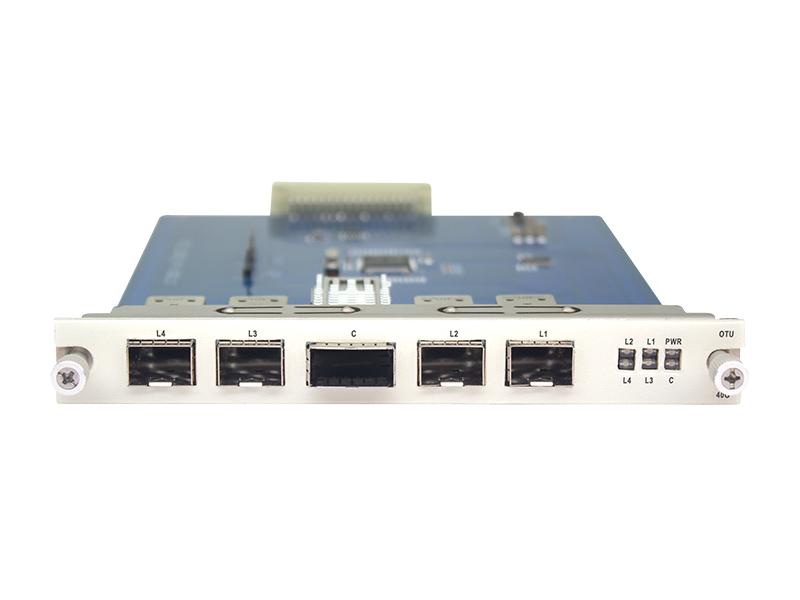

40G QSFP+to4x10G SFP+ OTU Service Card
40G QSFP+to4x10G SFP+ OTU Service Card
40G QSFP+to4x10G SFP+ OTU Service Card

Product Details

  • Product Details


40G QSFP+ to 4x10G SFP+ OTU business board



The 40G QSFP+ to 4x10G SFP28 OTU business board is a customer-side 40G service access module developed by Stellars Fusion Technology and designed for optical fiber links. It can be converted into 4-line road-side 10G DWDM standard wavelength optical signals. It can be used with a DWDM multiplexer/demultiplexer to achieve wavelength division multiplexing transmission and realize a 1-pair optical fiber multi-channel 40G transmission solution.

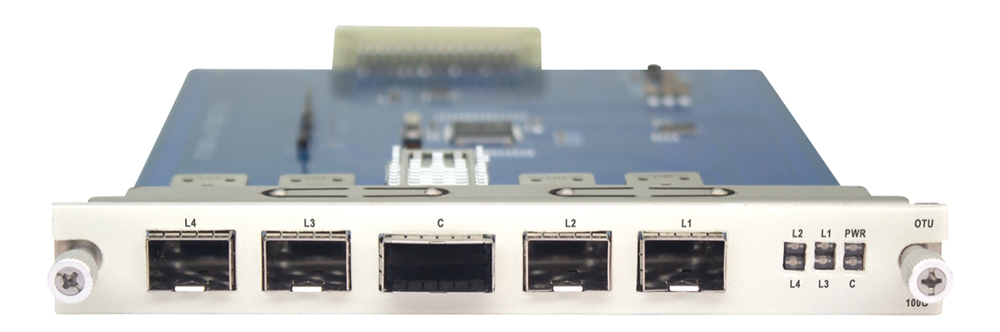

Figure 1 40G OTU business board


Product Specifications

System parameters

Technical indicators

maximum capacity

40G<=> 4X10G DWDM bidirectional transmission

interface

Client side: 1xQSFP+

Line test: 4xSFP+

Line side wavelength range

DWDM：1528.77nm ~ 1567.14nm

Service access type

40GE

Board size

156（W）× 20（H）× 225（D）（mm）

Environmental requirements

working temperature

-10℃ ~ 50℃

Storage temperature

-40℃ ~ 80℃

relative humidity

5% ~ 95% no condensation

Safety and EMC

Comply with FCC, UL, CE, TUV, CSA standards

Power consumption

<13W




Ordering information

model

SpecificationsDescription

FW640G10

40G service board 1* 4X10G to 40Gbit/s service access board (4XSFP+ to 1XQSFP+ interface), compatible with 40G Ethernet and OTN services, occupies 1 slot) occupies 1 slot in the FW6600 chassis
