400G DCI BOX 1U Compact Fully Loaded1.6T DCI BOX
Product features: Supports up to 16*100G client-side access, 8*200G and 4*400G line-side transmission, achieving a one-way 1.6Tbps (two-way 3.2Tbps) business transmission capacity . The equipment can be stacked, and the transmission capacity can be expanded to
Communication Products
Product Overview
Product features:
- Supports up to 16*100G client-side access, 8*200G and 4*400G line-side transmission, achieving a one-way 1.6Tbps (two-way 3.2Tbps) business transmission capacity. The equipment can be stacked, and the transmission capacity can be expanded to dual-fiber (single wave 200G*96 waves @50GHz) or (single wave 400G*64 waves @75GHz or Single wave 400G*48 waves@100Ghz) Single wave 400G*48 waves@100Ghz)
- The 1U chassis has a modular design, and the single board adopts a hot-swappable design, which supports smooth upgrades and can flexibly expand or delete services according to needs.
- Supports dual power supply 1+1 hot backup, AC 110V~260V or DC power supply DC-48V, meeting the requirements of server racks in data center computer rooms.
- Has a complete network management protocol: supports various mainstream interfaces: WEB, SNMP, CLI, TLI and other network management interfaces.
- Support dual network management cards, 1+1 pipe network function
- Support customized development of network management protocols: Various network management can be flexibly customized according to customer needs
Product Details
- Product Details

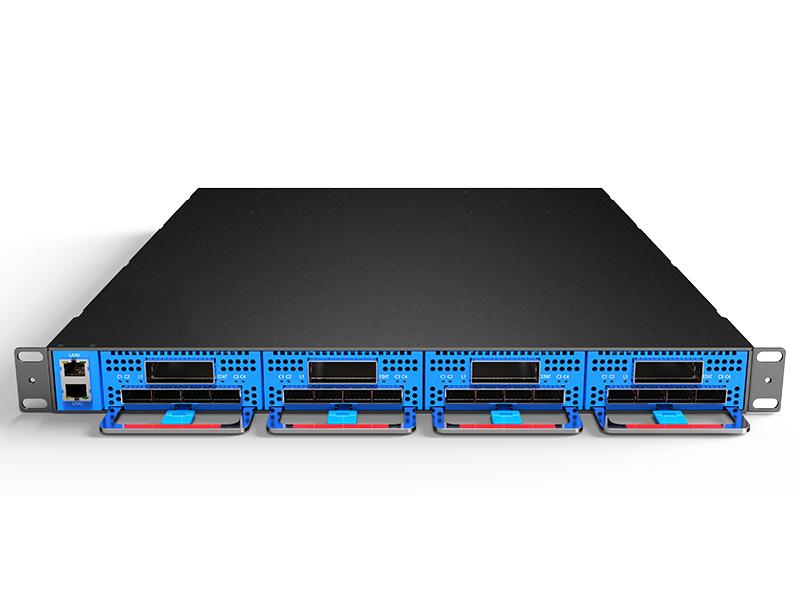

FW-8800 1U compact DCI 400G BOX fully equipped with 1.6T DCI BOX

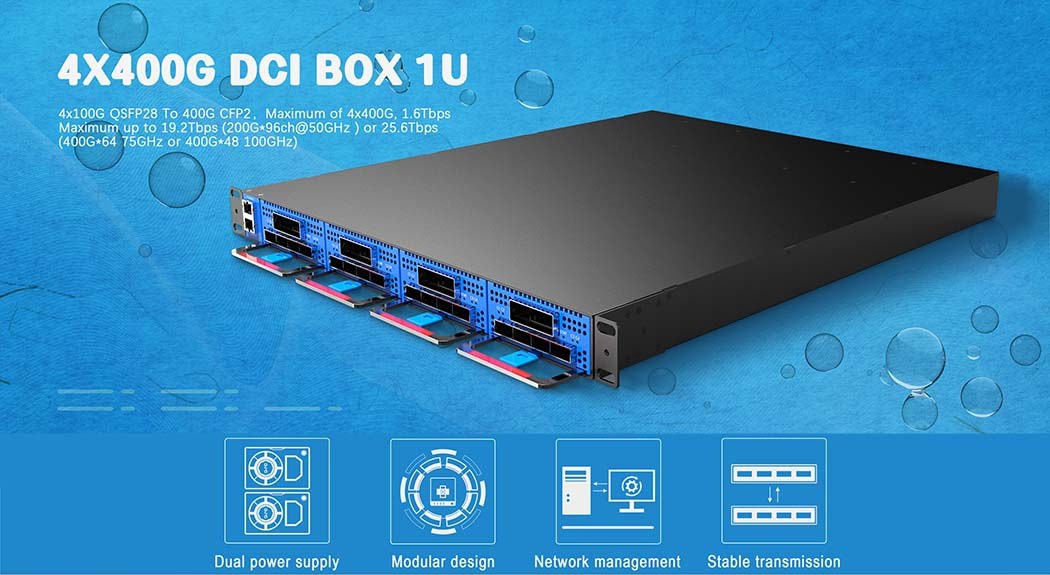

4x100G QSFP28 to 400G CFP2, fully equipped with 4x400G bidirectional 3.2T business capacity 1U chassis, dual-core large capacity 48*400G DWDM@100GHz or 64*400G DWDM@75GHz point-to-point transmission.
400G DCI-BOX FW-8800 is independently developed by Huanrong Technology and is a 400G high-speed transmission product. A single board of this product supports four 100G clients and one 400G line. It supports multi-service and large-capacity transmission networking applications. It has a 1U chassis structure design and can be plugged into four 400G boards. The maximum support capacity of a single machine is 3.2Tbps. The product’s main applications are in data center DCI interconnection and metro access and aggregation. Provide users with various optical transmission solutions of different capacities, different transmission distances, and intelligent business applications.

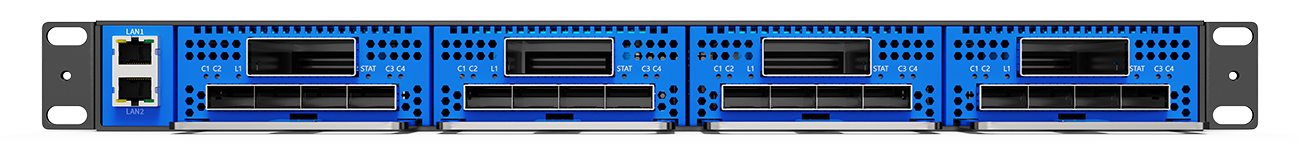

400G DCI BOX 1U chassis front

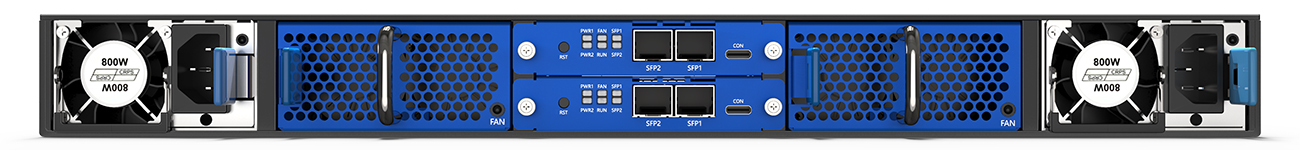

400G DCI BOX 1U chassis back DCI BOX 1UBack of chassis

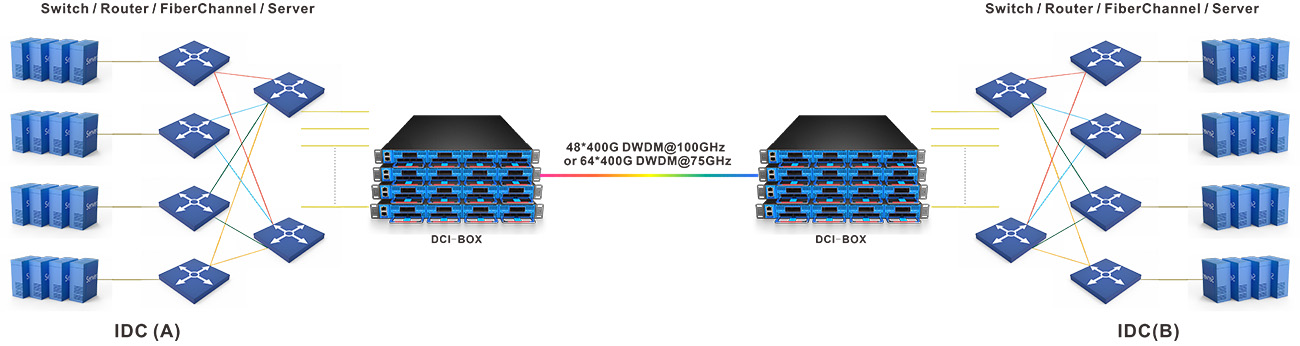

Application Diagram
Product Specifications：
|
parameter |
describe |
|
|
Maximum capacity of a single chassis |
Dual fiber bidirectional 8X 200G/4X400G 1.6Tbps |
|
|
Line side modulation mode |
DP-QPSK@100G DP-16QAM@200G; DP-8QAM@200G; DP-QPSK@200G DP-16QAM@400G |
|
|
line side protocol |
SD-FEC/OpenROADM/OpenZR+ |
|
|
Service access type |
100GE、100GE KR4、OTU4、FlexE、OTUCn |
|
|
Standard network management function |
Supports real-time alarm and historical query; supports real-time monitoring of performance, real-time monitoring of coherent optical performance parameters and OSNR, adjustable VOA optical power, 100G_200G_400G multi-service access and free switching, automatic laser shutdown function (ALS), arbitrary channel spacing adjustable technology, up to 96 waves (@100G, @200G/400G 50GHz) or 64 waves (@400G 75GHz), etc. 50GHz)Or 64 waves (@400G 75GHz), etc. |
|
|
Enhanced optional features |
Supports real-time and historical query of 1000+ alarms; supports real-time monitoring of 1000+ properties and 15-minute and 24-hour performance statistics functions, Ethernet RMON statistics function, supports LLDP monitoring function, supports DM delay test function, and supports PRBS error test function |
|
|
Physical network topology |
Chain type, star type, ring type |
|
|
Network management method |
SNMP、CLI、WEB、SDN、NMS |
|
|
Environmental requirements |
working temperature |
-5℃~45℃ |
|
storage temperature |
-40℃~85℃ |
|
|
relative humidity |
5%~95% no condensation |
|
|
size |
440(W)*44(H)*560(D)(mm) |
|
|
Power requirements (standard values) |
110~260V/AC, 50Hz; -48V/DC and 280VHVDC power supply (optional) |
|
|
Power consumption |
<800W |
|
