2CH200G CFP2 to2X100G QSFP28 OTU Service Card
Product features: Support DWDM transmission and wavelength conversion. A single board supports 4 channels of 100G bidirectional service access. The line side supports 2*200G CFP2 DCO coherent optical modules. The client side supports multiple module interface
Communication Products
Product Overview
Product features:
- Support DWDM transmission and wavelength conversion.
- A single board supports 4 channels of 100G bidirectional service access.
- The line side supports 2*200G CFP2 DCO coherent optical modules.
- The client side supports multiple module interface types: 100GBASE-SR4/CWDM4/LR4/PSM4.
- Supports ALS function (no light shutdown).
- Support DDM signal monitoring.
- Support SD-FEC, SC-FEC functions.
- Supports a unified network management platform based on SNMP, network management methods CLl (teInet and console), Web, NetView (graphical interface)
Product Details
- Product Details

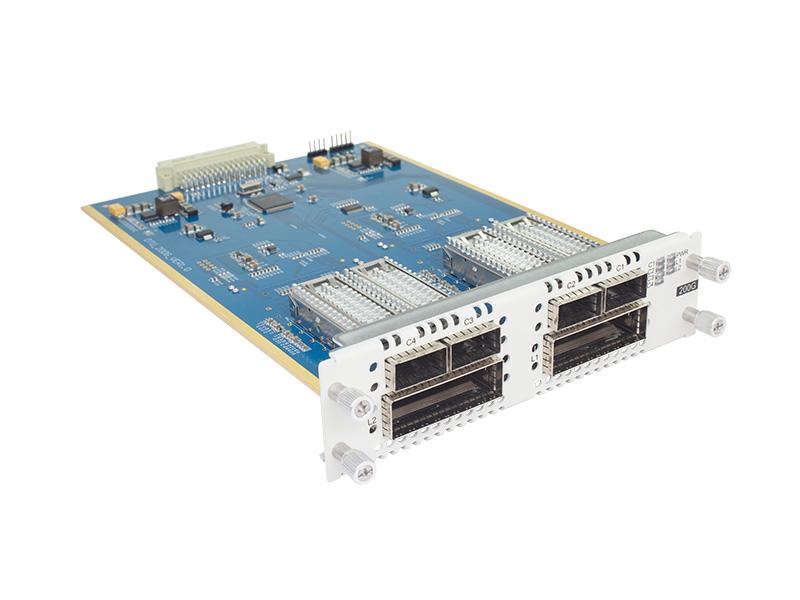

2-way 200G CFP2 to 2X100G QSFP28 OTU business board
FW6200G24Q
The 2*200G CFP2 OTU board is a 100G service access module developed by Ruidong and designed for optical fiber links. It can adjust the wavelength of the CFP2 coherent optical module and convert it into a DWDM standard wavelength optical signal. It can be used with a DWDM multiplexer/demultiplexer to achieve wavelength division multiplexing transmission, providing a high-quality solution for transmission lines that are in short supply of optical fiber resources and have high optical fiber line losses.

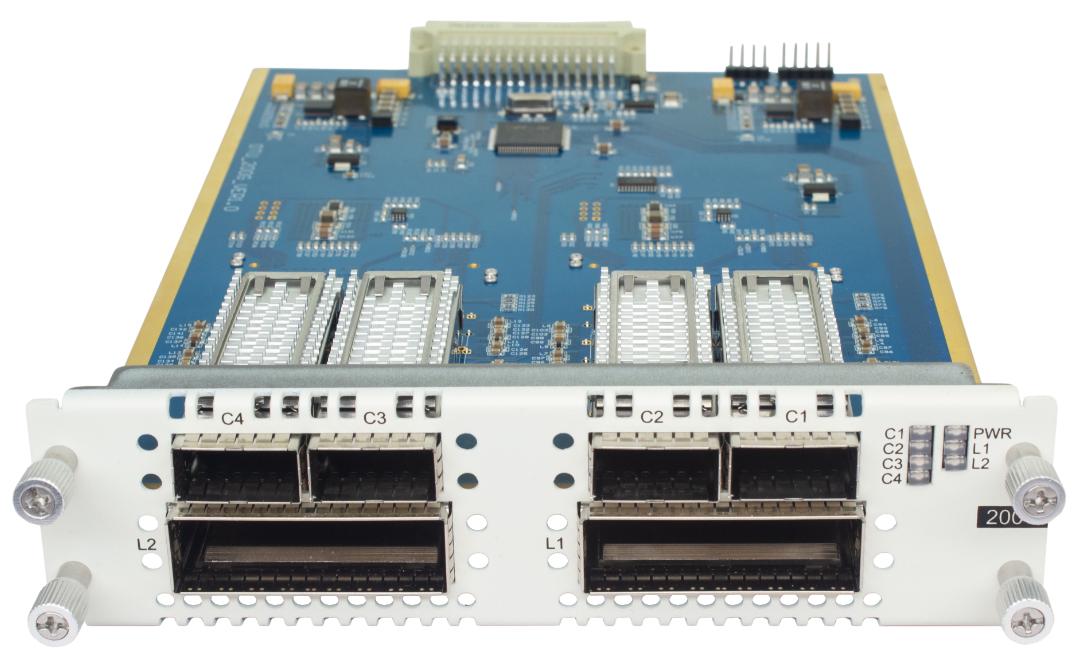

picture 1 2*200G CFP2 OTU business board
Product features:
- Support DWDM transmission and wavelength conversion.
- A single board supports 4 channels of 100G bidirectional service access.
- The line side supports 2*200G CFP2 DCO coherent optical modules.
- The client side supports multiple module interface types: 100GBASE-SR4/CWDM4/LR4/PSM4.
- Supports ALS function (no light shutdown).
- Support DDM signal monitoring.
- Support SD-FEC, SC-FEC functions.
- Supports a unified network management platform based on SNMP, network management methods CLl (teInet and console), Web, NetView (graphical interface)
Product Specifications：
System parameters
Technical indicators
Maximum capacity of a single board
2*100G one/two-way transmission; 2*200G one/two-way transmission
Tunable wavelength range
DWDM：1529.16nm~1567.14nm（191.3THz-196.05THz）
Modulation method
DP-QPSK@100G；DP-16QAM@200G;DP-16QAMps@200G;DP-QPSK@200G
Service access type
100GE、OTU4
dispersion tolerance
±40000ps/nm@100G
OSNR tolerance
<12dB@100G QPSK;
<21dB@200G DP-16QAM <16dB@200G DP-16QAMps；<13.5dB@200G DP-QPSK
Board size
156 （W）× 41（H）× 225（D）（mm）
working temperature
-10℃ ~ 50℃
Storage temperature
-40℃ ~ 80℃
relative humidity
5% ~ 95% no condensation
Safety and EMC
Comply with FCC, UL, CE, TUV, CSA standards
Power consumption
<78W
