200G QSFP56 AOC Transceiver
Features Up to 50Gbps data rate per channel by PAM4 modulation Support 200GAUI-4 electrical interface Integrated 850nm VCSEL array and PD array Single +3.3V power supply Case temperature range: 0 ~ +70℃ Hot-pluggable QSFP form factor RoHS complaint Application
Communication Products
Product Overview
Features
- Up to 50Gbps data rate per channel by PAM4 modulation
- Support 200GAUI-4 electrical interface
- Integrated 850nm VCSEL array and PD array
- Single +3.3V power supply
- Case temperature range: 0 ~ +70℃
- Hot-pluggable QSFP form factor
- RoHS complaint
Applications
- Data centers and Cloud Networks
Standards
- IEEE 802.3cd
- SFF 8679
- CMIS4.0 or SFF8636
Product Details
- Product Details

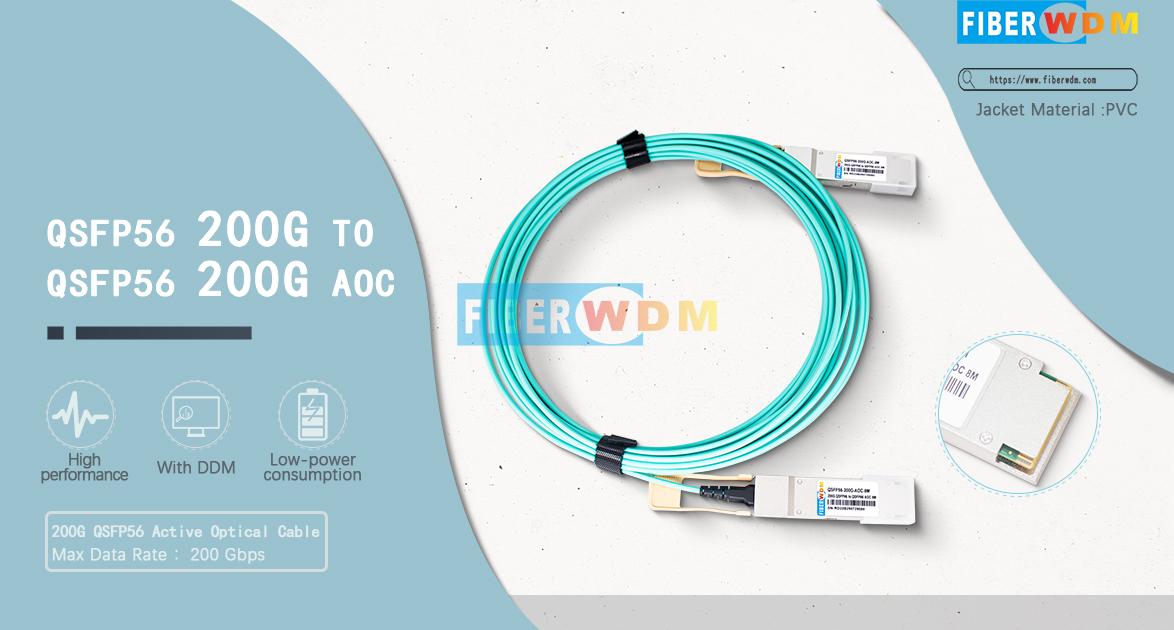

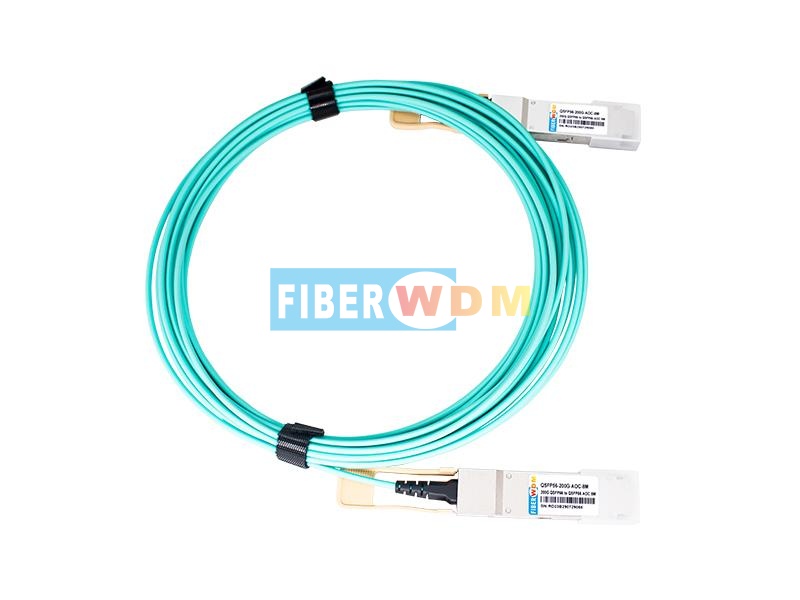

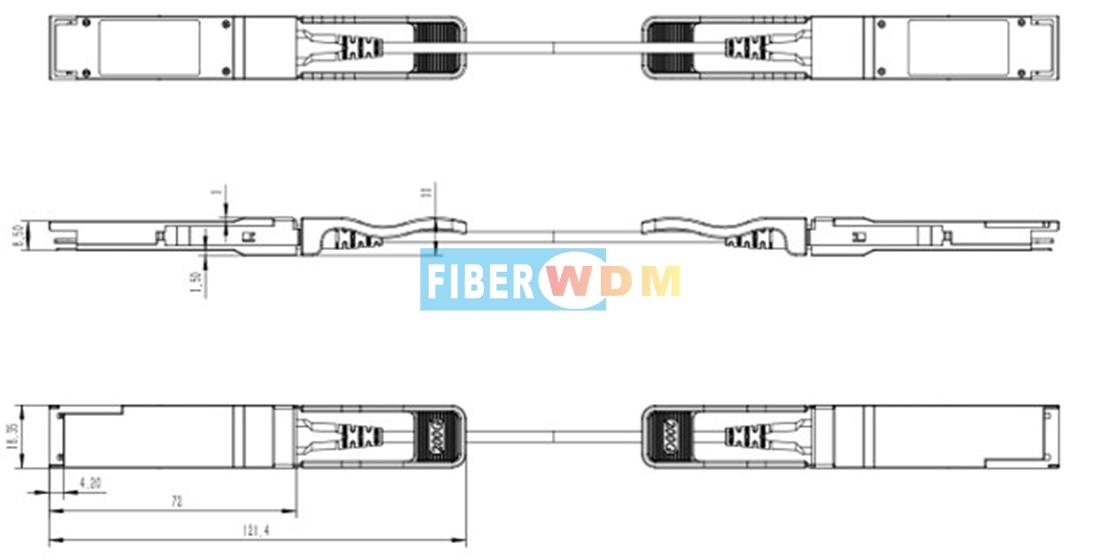

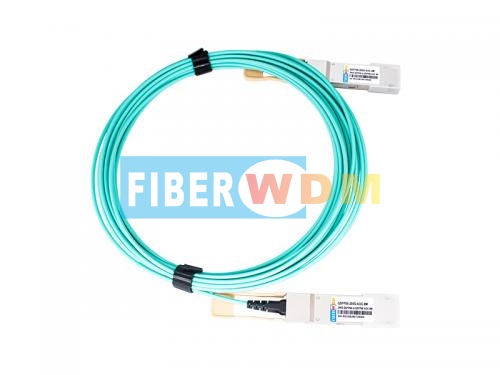

200G QSFP56 Active Optical Cable
Absolute Maximum Ratings
|
Product |
Modula tion |
Protocol |
Nominal Rate |
Specifications |
||||
|
Aggregate (Gbps) |
Electrical Lanes (Gbaud) |
ppm |
High Speed Electrical |
Pre-FEC Max BER |
Link |
|||
|
200G -AOC |
PAM4 |
IEEE802.3cd |
212.5 |
26.5625 |
±100 |
200GAUI-4 |
2.4E-4 |
0.5~ 100m |
|
Parameter |
Symbol |
Unit |
Min |
Max |
|
Case Operating Temperature |
Top |
℃ |
0 |
70 |
|
Storage Temperature Range |
Ts |
℃ |
-40 |
85 |
|
Relative Humidity |
RH |
% |
0 |
85 |
|
Power Supply Voltage |
Vcc |
V |
-0.5 |
3.6 |
Recommended Operating Conditions
|
Parameter |
Symbol |
Unit |
Min |
Typ |
Max |
|
Operating Case Temperature Range |
Tca |
oC |
0 |
/ |
70 |
|
Power Supply Voltage |
Vcc |
V |
3.135 |
3.3 |
3.465 |
Electric Ports Definition
|
Parameter |
Symbol |
Unit |
Min |
Typ |
Max |
Notes |
|
Supply Voltage |
VCC |
V |
3.135 |
3.3 |
3.465 |
|
|
Power Consumption |
Pc |
W |
|
|
4 |
Per end |
|
Transmitter |
||||||
|
Input Differential Impedance |
RIN |
Ω |
80 |
100 |
120 |
|
|
Single Ended Data Input Swing |
VIN |
mVp-p |
90 |
|
500 |
|
|
Transmit Disable Voltage |
VDIS |
V |
2 |
|
VCCHOST |
|
|
Transmit Enable Voltage |
VEN |
V |
VEE |
|
VEE+0.8 |
|
|
Transmit Fault Assert Voltage |
VFA |
V |
2 |
|
VCCHOST |
|
|
Transmit Fault De-Assert Voltage |
VFDA |
V |
VEE |
|
VEE+0.8 |
|
|
Receiver |
||||||
|
Single Ended Data Output Swing |
VOD |
mVp-p |
200 |
|
500 |
|
|
LOS Fault |
VLOSFT |
V |
2 |
|
VCCHOST |
|
|
LOS Normal |
VLOSNR |
V |
VEE |
|
VEE+0.8 |
|
|
Differential termination mismatch |
|
% |
|
|
10 |
|
|
IIC communication |
||||||
|
IIC Clock frequency |
– |
KHZ |
/ |
100 |
400 |
|
|
clock stretching |
– |
us |
/ |
/ |
500 |
|

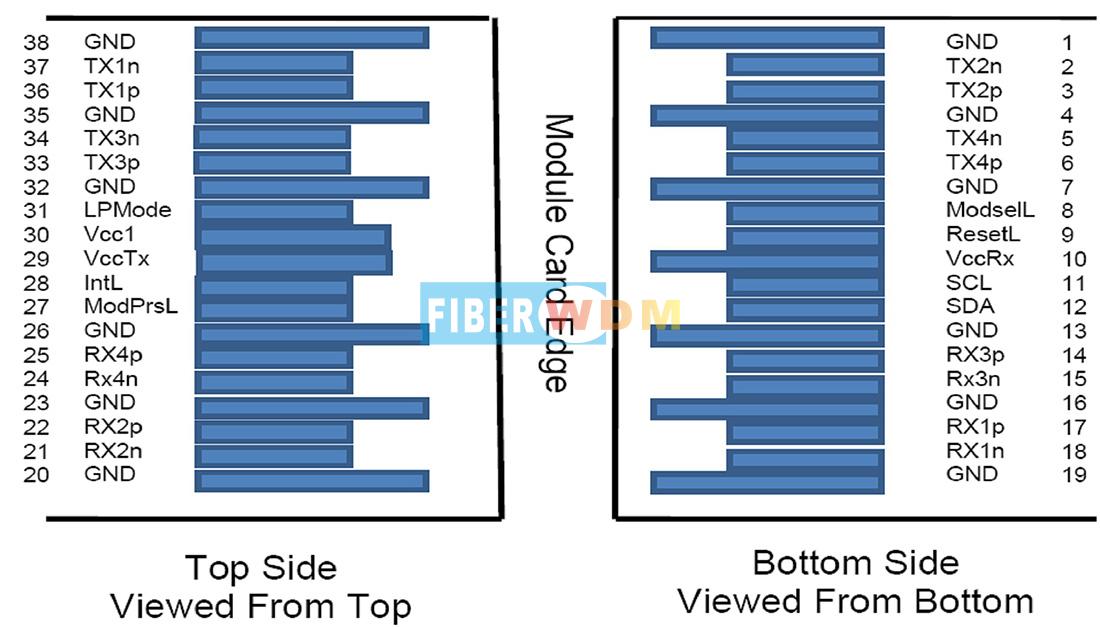

QSFP56 Connector and Pinout Description
The electrical interface to the transceiver is a 38 pins edge connector. The 38 pins provide high speed data, low speed monitoring and control signals, I2C communication, power and ground connectivity. The top and bottom views of the connector are provided below, as well as a table outlining the contact numbering, symbol and full description.
Module Memory Map
Compatible CMIS rev 4.0 Or SFF8636
Ordering information
|
Part Number |
Description |
|
QSFP56-200G-AOC-1M |
200G QSFP56 AOC 1M |
|
QSFP56-200G-AOC-3M |
200G QSFP56 AOC 3M |
|
QSFP56-200G-AOC-5M |
200G QSFP56 AOC 5M |
|
QSFP56-200G-AOC-7M |
200G QSFP56 AOC 7M |
|
QSFP56-200G-AOC-10M |
200G QSFP56 AOC 10M |
|
QSFP56-200G-AOC-15M |
200G QSFP56 AOC 15M |
|
QSFP56-200G-AOC-20M |
200G QSFP56 AOC 20M |
|
QSFP56-200G-AOC-xxM |
200G QSFP56 AOCxxxM |
