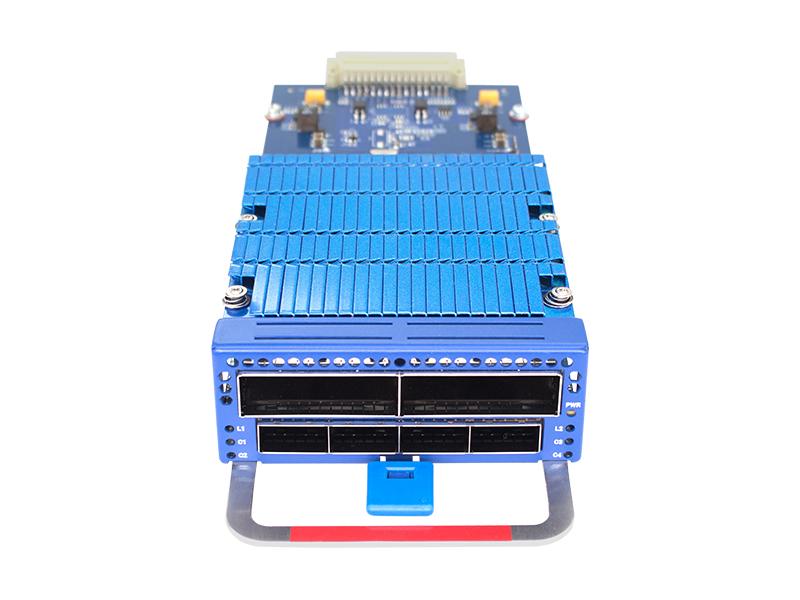

2*100G QSFP28 to 200G CFP2 TMUX Card FW842
Product features: The wavelength is adjustable, supporting up to two channels of 200G 75GHz * 64 waves and 200G 100GHz * 40 waves. Equipped with flexible coherent modulation technologies: DP-16QAM, DP-8QAM, DP-QPSK. Equipped with a variety of FEC error correct
Communication Products
Product Overview
Product features:
- The wavelength is adjustable, supporting up to two channels of 200G 75GHz * 64 waves and 200G 100GHz * 40 waves.
- Equipped with flexible coherent modulation technologies: DP-16QAM, DP-8QAM, DP-QPSK.
- Equipped with a variety of FEC error correction technologies: oFEC, CFEC, SCFEC, SDFEC.
- Supports flexible service access functions: 100GE, 100GE KR4, OTU4 and 100G FlexE.
- Supports complete performance monitoring and statistical functions.
- Supports Ethernet RMON performance statistics, DM delay and PRBS detection functions, OTN PM and SM performance statistics and other functions.
- Supports high-precision real-time monitoring of board temperature, voltage, current and power consumption.
- The client side supports multiple module interface types: 100GSR4/CWDM4/LR4/PSM4.
- Supports unified network management platform, network management methods SNMP, CLI, Web, NMS (graphical interface) and NetconfYang model interface.
Product Details
- Product Details
2*100G QSFP28 to 200G CFP2 TMUX board FW842
2*100G The QSFP28 to 200G CFP2 TMUX board is used for fiber link 200G service access. It can realize two-channel 2*QSFP28 100G conversion to CFP2 200G. The wavelength of the CFP2 coherent optical module is adjustable, and it can be used with the DWDM multiplexer/demultiplexer to achieve wavelength division multiplexing transmission. It provides a high-quality solution for transmission lines that are in short supply of optical fiber resources and have high optical fiber line losses. QSFP28Convert to 200G CFP2 TMUX board for fiber link 200G service access board，Can realize two-way 2*QSFP28 100G conversion to CFP2 200G，CFP2Coherent optical module with adjustable wavelength，Cooperate with DWDM multiplexer/demultiplexer to achieve wavelength division multiplexing transmission，To solve the shortage of optical fiber resources、Optical fiber line provides high-quality solutions for transmission lines with high losses。
Product Specifications：
|
parameter |
describe |
|
|
Maximum capacity of a single board |
Two channels of 2*100G bidirectional transmission and 2*100G unidirectional transmission |
|
|
Wavelength (frequency) range |
DWDM:1529.16mm-1567.14nm(191.3THz-196.05THz) |
|
|
Adjustment method |
DP-QPSK@100G; DP-16QAM@200G; DP-8QAM@200G; DP-QPSK@200G; DP-8QAM@300G: DP-16QAM@400G |
|
|
line side protocol |
Open ROADM/Open ZR+/SCFEC |
|
|
dispersion tolerance |
±40000ps/nm@100G |
|
|
OSNR tolerance |
<11.5dB@100G DP-QPSK:<18.5dB@200G DP-8QAM;<21.5dB@200G DP 16QAM;<14dB@200G DP-QPSK; |
|
|
Service access type |
100GE, 100GE KR4, OTU4 and 100G FlexE FlexE |
|
|
Board size |
86(W)x40(H)x215(D)(mm) |
|
|
Environmental requirements |
working temperature |
-5℃~45℃ |
|
storage temperature |
-40℃~85℃ |
|
|
relative humidity |
5%~95% no condensation |
|
|
Product size |
100(W)x40(H)x224(D)(mm) |
|
|
Power consumption |
<86W |
|
