1X8 900-1700nm 300um Optical Switch

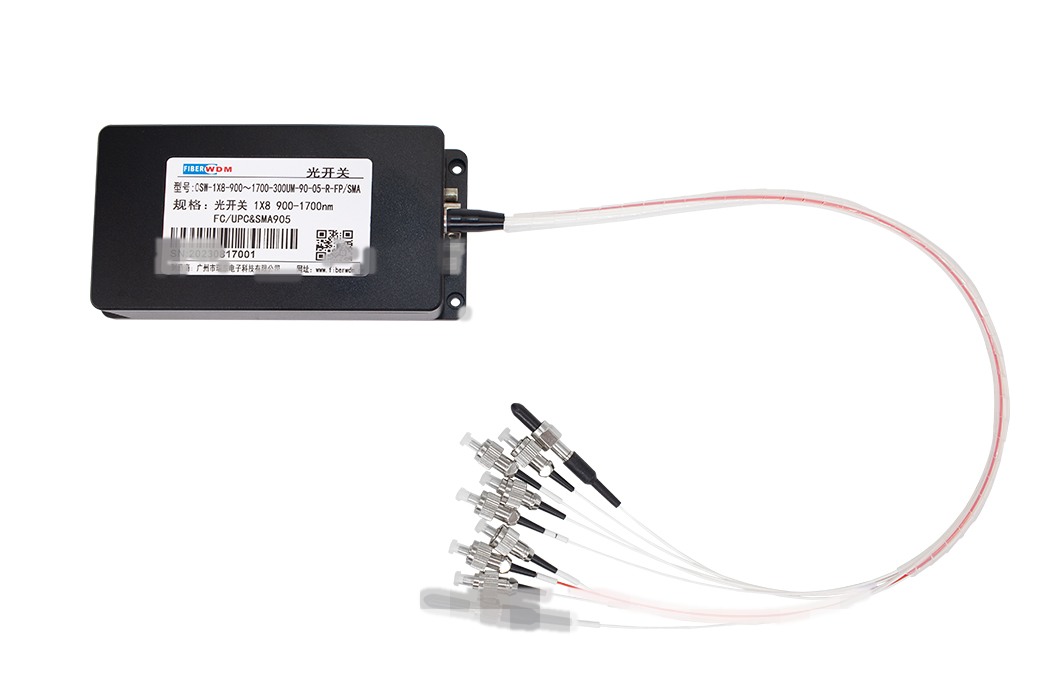

OSW-1X8-300UM 1×8Mechanical Optical Switch，900-1700nm, 300um 0.5m fiber, COM FC/UPC, 2xoutput SMA905 connectors, 6xoutput FC/UPC connectors. 1x8 mechanical optical switch is a kind of light path control equipment. It can realize multi-channel fiber optic light

Request a Quote

Communication Products

Product Overview

OSW-1X8-300UM

1×8Mechanical Optical Switch，900-1700nm, 300um 0.5m fiber, COM FC/UPC, 2xoutput SMA905 connectors, 6xoutput FC/UPC connectors.

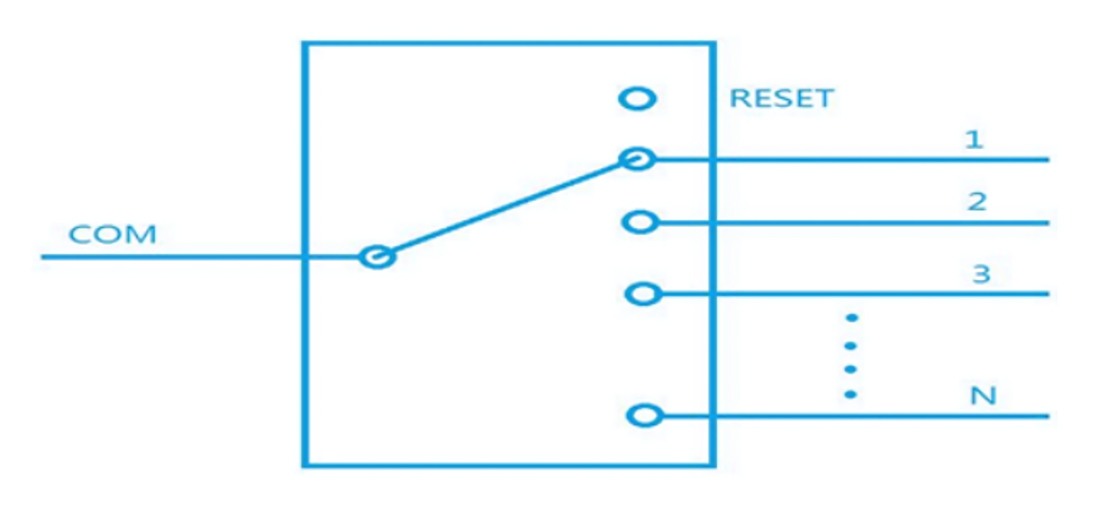

1×8 mechanical optical switch is a kind of light path control equipment. It can realize multi-channel fiber optic light path switching. In the optical fiber transmission system, it is used for multi-channel fiber monitoring, multi light source/detector selection, and optical fiber path protection etc. Besides, it is also used in optical fiber test system for optical fiber and related component test, outdoor cable test and multi-spot optical sensors monitoring system.

Specifications

Parameter	Parameter Values
Model	OSW-1X3-300UM
Insertion Loss	Typ.:1.0 dB Max.:1.2 dB
Wavelength Range	900-1700 nm
Test Wavelength	850 nm
Fiber Type	300UM (NA=0.22)
Return Loss	≥30 dB
Crosstalk	≥50 dB
PDL	≤0.05 dB
WDL	≤0.25 dB
TDL	≤0.25 dB
Repeatability	≤0.03 dB
Lifetime	>107
Switching Time	≤20 ms（Adjacent channel）
Optic Power	≤500 mW
Connector	FC、LC、SC、ST
Control Mode	RS-232
Working Power Supply	5V/600 mA

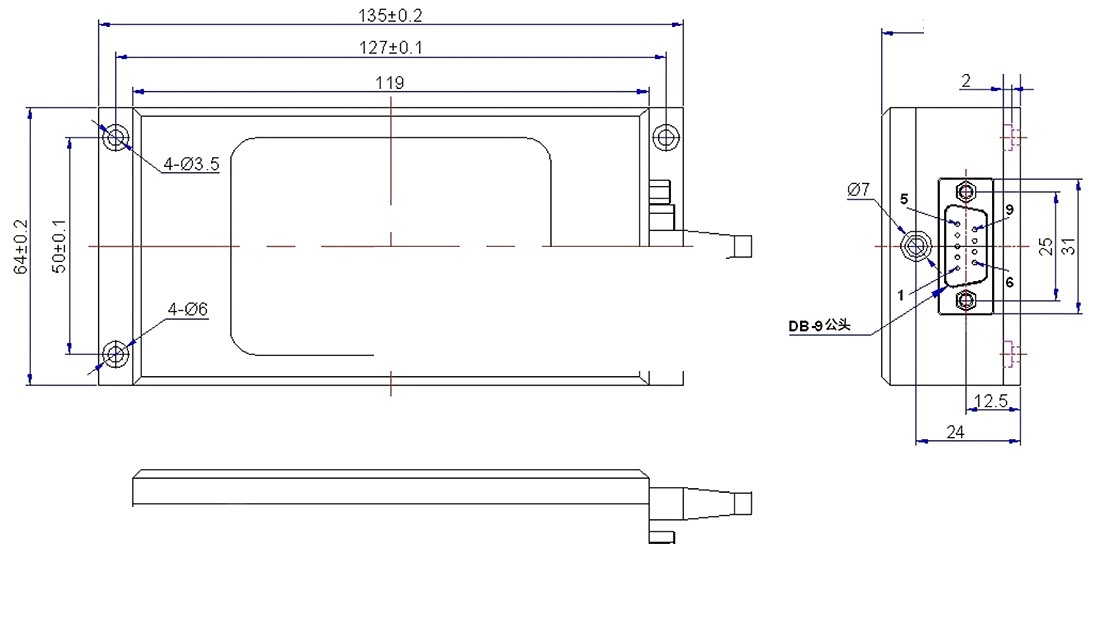

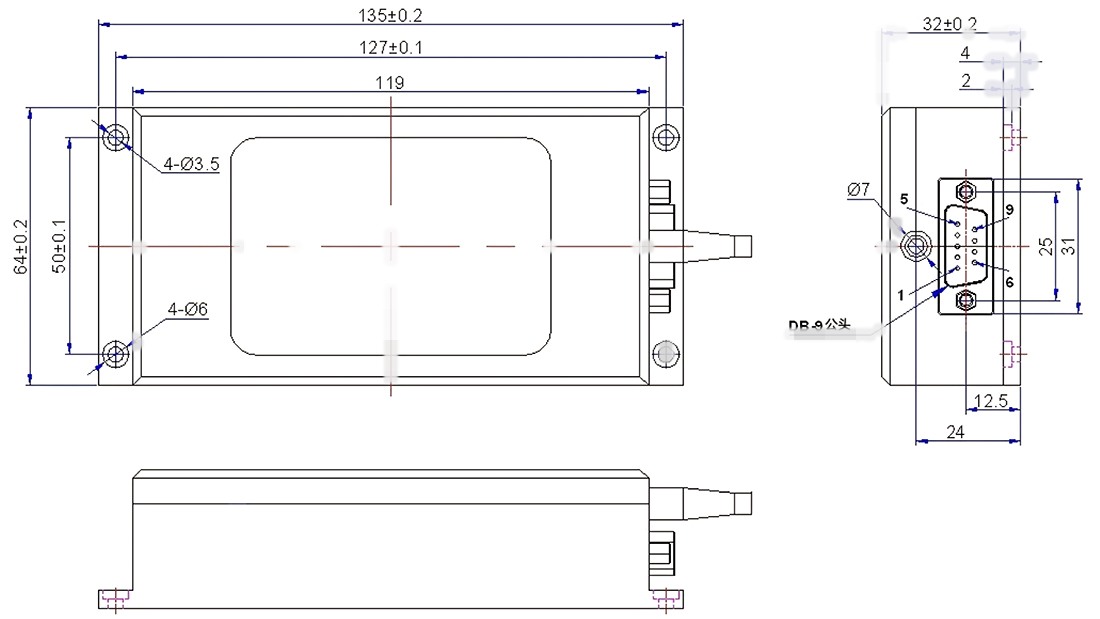

Product Sze	130 x 64 x 32
Operating Temperature	-20℃ to +70℃
Operating Temperature	-40℃ to +85℃

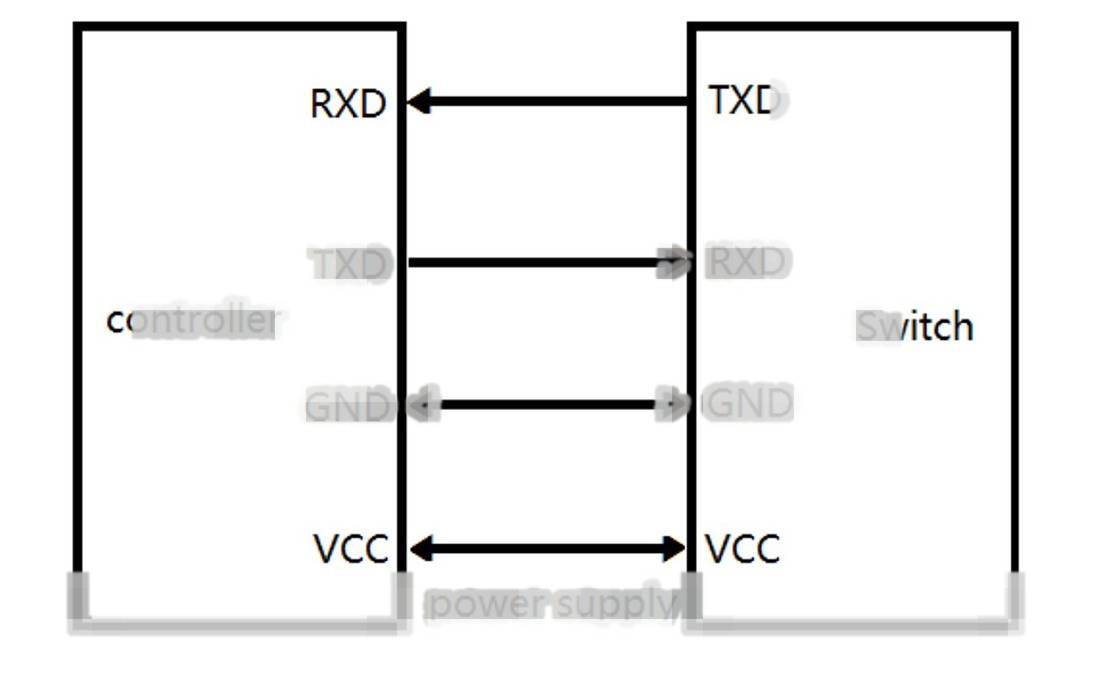

Pin Specifications

DB-9 Male Connector
Pin No.	I / O	Signal	Description
2	Input	RXD	Receive Data
3	Out	TXD	Send Data
5	Power	GND	Ground
8	Power	GND	Ground
9	Power	VCC1	5.0±5% VDC Power Supply (600mA)
1,4,6,7,10	NC	NC	Vacancy
