OSW-1X8-600UM

1×8 Mechanical Optical Switch, 400-2500um, 600um 0.5m fiber, SMA905 connectors

1x8mechanical optical switch is designed and produced by Stellar Fusion, it is a kind of light path control equipment, witch is used 600um fiber, and work wave is 400~2500um. It can realize multi-channel fiber optic light path switching. In the optical fiber transmission system, it is used for multi-channel fiber monitoring, multi light source/detector selection, and optical fiber path protection etc. Besides, it is also used in optical fiber test system for optical fiber and related component test, outdoor cable test and multi-spot optical sensors monitoring system.

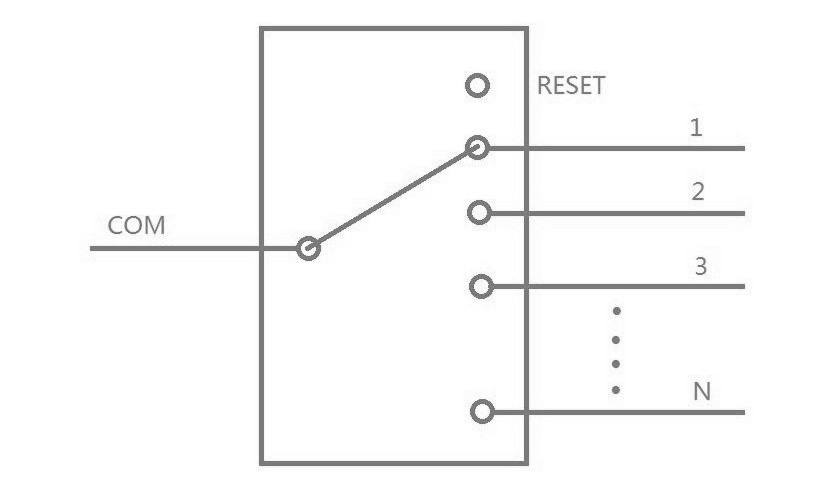

1X8 400-2500nm 600um Mechanical Optical Switch 0.5m fiber, SMA905 connectors

Specifications

Parameter	Parameter Values
Model	OSW-1X8-600UM
Insertion Loss	≤1.5dB
Wavelength Range	400-2500nm
Fiber Type	600UM
Return Loss	≥30 dB
Crosstalk	≥ 50 dB
PDL	≤0.1dB
WDL	≤0.25 dB
TDL	≤0.25 dB
Repeatability	≤0.1dB
Lifetime	>107
Switching Time	≤20ms（Adjacent channel）
Connector	SMA905
Control Mode	RS232
Working Power Supply	5V/1000 mA

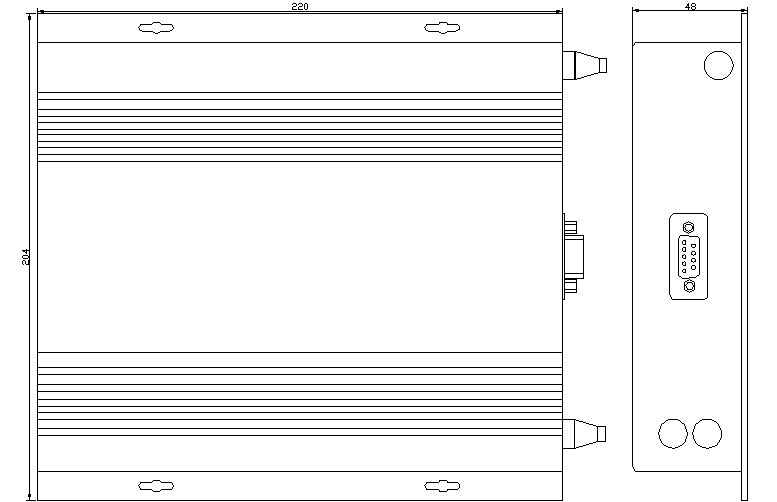

Product Sze	220 x 204 x 48
Operating Temperature	-20℃ to +70℃
Operating Temperature	-40℃ to +85℃

Pin Specifications

DB-9 Male Connector
Pin No.	I /O	Signal	Description
2	Input	RXD	Receive Data
3	Out	TXD	Send Data
5,8	Power	GND	Ground
9	Power	VCC	5.0±5% VDC Power Supply (max 1000mA)
1,4,6,7	NC	NC	NC
