10G OTU/OEO SFP+/SFP Multi-Service Access Card
Support CWDM or DWDM transmission and wavelength conversion. Supports transmission distances of various Specifications: supports transmission up to 80KM without relay. Supports 4-way bidirectional or 8-way unidirectional 1.25Gbit/s~11.3Gbit/s protocol service
Communication Products
Product Overview
- Support CWDM or DWDM transmission and wavelength conversion.
- Supports transmission distances of various Specifications: supports transmission up to 80KM without relay.
- Supports 4-way bidirectional or 8-way unidirectional 1.25Gbit/s~11.3Gbit/s protocol service access at any rate, and supports client single-mode or multi-mode.
- Supports a unified network management platform based on SNMP, and network management methods include CLI, Web, and NetRiver (graphical interface).
- Supports CDR function, which can optimize output, DDM signal monitoring, and no-light shutdown function.
- Support software to close the port.
Product Details
- Product Details
10G OTU/OEO SFP+/SFP FW10G3R Multi-service access board
4*10Gbit/sDual fiber bidirectional (1G~10GFull rate business compatible,8*SFP+Optical interface, withCDR）
10G OTU/OEO The FW10G3R board is a business access module developed by Huanrong Technology and designed for optical fiber links. It can realize 3R signal regeneration for services with any rate protocol from 1.25Gbit/s to 11.3Gbit/s, and can be converted into CWDM or DWDM standard wavelength optical signals. Used with CWDM or DWDM multiplexer/demultiplexer to achieve wavelength division multiplexing transmission, it is suitable for optical communication systems such as PDH/SDH/POS/SONET/SAN/ETHERNET, and provides a high-quality solution for transmission lines where fiber resources are in short supply and fiber line losses are high.
Product introduction

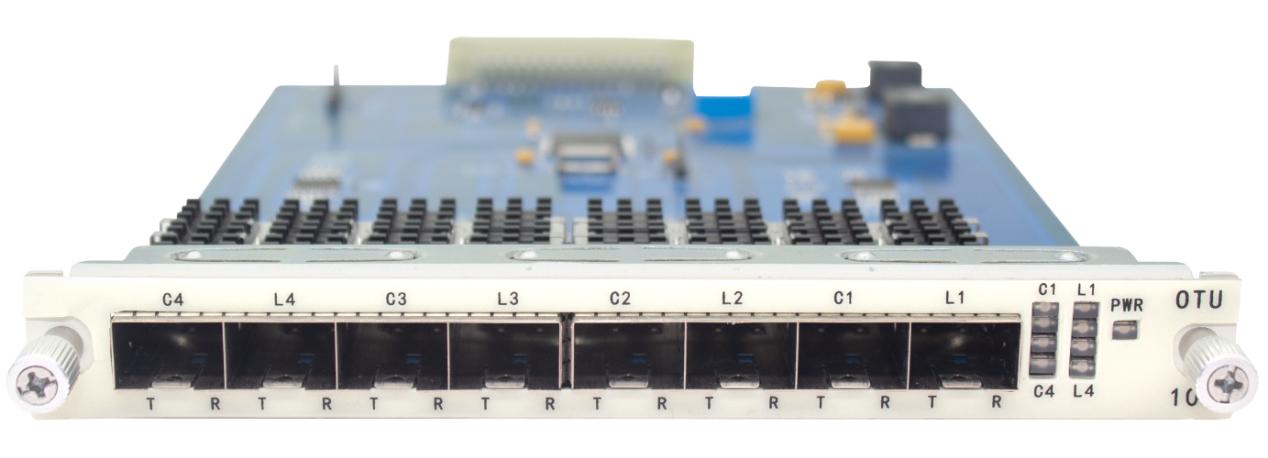

10G OTU/OEO board
Product Specifications
|
System parameters |
Technical indicators |
|
|
Maximum capacity of a single board |
4*10G two-way transmission 8*10G one-way transmission |
|
|
Wavelength range |
CWDM：1271~1611nm DWDM: C-Band (100GHZ or 50GHZ) |
|
|
Service access type |
PDH、SDH：STM-16/STM-64 、Ethernet、 SONET：OC-48/OC-192 FE、GE、10GE、1G、2G、4G、8G、10G、CPRI 1~7、POS FICON、ESCON |
|
|
3R technology |
3R functions: Re-amplifying, Retiming, and Re-shaping |
|
|
Network management function |
CDR function (DDM real-time monitoring), different rate adaptive setting function, business one- and two-way setting |
|
|
Network management method |
Web、NetViver |
|
|
Board size |
156 （W）× 20（H）× 225（D）（mm） |
|
|
Environmental requirements |
working temperature |
-10℃ ~ 70℃ |
|
Storage temperature |
-40℃ ~ 80℃ |
|
|
relative humidity |
5% ~ 95% no condensation |
|
|
Safety and EMC |
Comply with FCC, UL, CE, TUV, CSA standards |
|
|
Power consumption |
<18W |
|
Ordering information
|
model |
describe |
|
FW10G3R |
10G OTU/OEO service board, 4*10Gbit/s bidirectional (1G~10G full-rate business compatible, 8*SFP+ optical interface, with CDR) |
